Micro Diaphragm Delivery Pump for Gases up to 4.5 l/min with Low-Voltage Drive

Preview: Micro Diaphragm Delivery Pump for Gases up to 4.5 l/min with Low-Voltage Drive Preview: Micro Diaphragm Delivery Pump for Gases up to 4.5 l/min with Low-Voltage Drive
Micro Diaphragm Delivery Pump for Gases up to 4.5 l/min with Low-Voltage Drive
Micro Diaphragm Delivery Pump for Gases up to 4.5 l/min with Low-Voltage Drive

Description General Information
Description
Product specification Miniaturized diaphragm pumps for oil-free delivery and compressing of... more
Close menu

Product specification

Miniaturized diaphragm pumps for oil-free delivery and compressing of air and other non-aggressive and condensate-free gases as well as for evacuation. Low-voltage direct current motor, ready for mounting, electrical connection with flat plug. Maintenance-free, robust construction for continuous duty and long service life, medium-contacting parts made of low wear polymer materials. Installation position optional, but pump not running up against pressure or vacuum. Delivery rate adjustable by throttling at the suction side.

Technical specification

Material:

Pump head: PPS

Diaphragm: EPDM

Valves: EPDM

Drive system:

Voltage: 6; 12 or 24 V=

Amperage: <800 mA

Connection: flat plug

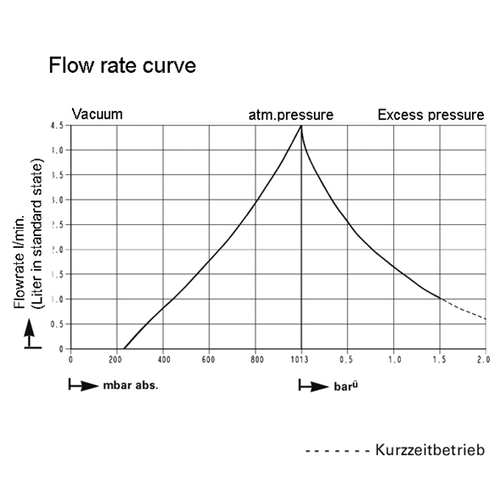

Max. delivery rate: 4.5 l/min at atmospheric pressure

Final vacuum: 230 mbar

Max. op. excess pressure: 1.5 bar

Max. ambient temperature: +5 to +40 °C

Pipe connection: nozzles, for tubing ID 5 - 6 mm

Dimension: 80 x 38 x 54 mm (L x W x H)

Weight: 210 g

General Information
more
Close menu
No additional information available.
Item Image Max. delivery rate
l/min.
 Endvakuum
mbar
 Spannung
Volt
 Einheit
Stück
 Price
Euro* 		Buy
16582
4,5 230 6= 1 339.00
16583
4,5 230 12= 1 339.00
16584
4,5 230 24= 1 339.00
