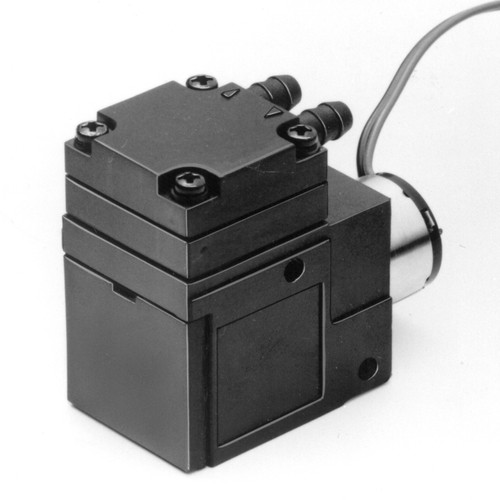

Micro Diaphragm Delivery Pump for Gases up to 0.85 l/min with Low-Voltage Drive

Product specification Miniaturized diaphragm pumps for oil-free delivery and compressing of... more

Product specification

Miniaturized diaphragm pumps for oil-free delivery and compressing of air and other non-aggressive and condensate-free gases as well as for evacuation. Low-voltage direct current motor, ready for mounting, prepared litz wire for electrical connection. Maintenance-free, robust construction for continuous duty and long service life, medium-contacting parts made of low wear polymer materials. Installation position optional, but pump not running up against pressure or vacuum. Delivery rate adjustable by throttling at the suction side.

Technical specification

Material:

Pump head: PPS

Diaphragm: EPDM

Valves: EPDM

Drive system:

Voltage: 6 V=

Amperage: <200 mA

Connection: prepared litz wire for soldering or for low-voltage plug

Final vacuum: 500 mbar absolute

Max. op. excess pressure: 250 mbar

Max. permissible ambient temperature: +5 to +40 °C

Pipe connection: nozzles, for tubing ID 4 mm

Dimension: 39 x 20 x 28 mm (L x W x H)

Weight: 30 g

No additional information available.
Item Image Max. delivery rate
l/min.
Spannung
Volt
Unit
piece
Price
Euro*
Buy
16576
0,85 6= 1 352.00
