PVDF Shrinkable Tubing, Shrinking Rate 2:1 - short length

No additional information available.
General Information Insulation of heating element connections Protection and tension-relief... more

General Information

Insulation of heating element connections

Protection and tension-relief of high-temperature resistant components

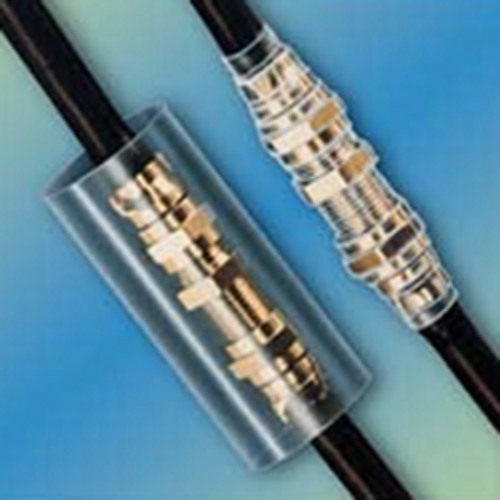

Protection of soldered and crimp connections

Protection from chemical impacts, e.g. electro-plating bathes.

High dielectric strength

Unmeltable and self-extinguishing

UL / CSA and VG-approved

High chemical resistance

Highest abrasion resistance

Material: PVDF (polyvinylidene fluoride), semi-rigid

Colour: natural-transparent

Temperature range: -55 to +175 °C

Shrinking rate: 2:1

Shrinkage temperature: +175 °C

Storage temperature: max.+50 °C

Radial shrinkage: 50 %

Longitudinal shrinkage: max. 10 %

Tensile strength: >34.5 MPa (ASTM D2671)

Elongation at break: >150 % (ASTM D2671)

Dielectric strength: 31.5 kV/mm (ASTM D2671)

Volume Resistivity: 1013 Ohm x cm min.

Regulations: UL 224, +150 °C, VW-1, 600 V

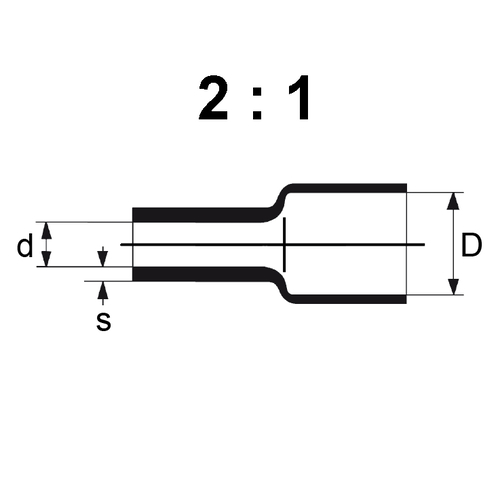

Item Image Ø before shrinkage (D)
mm
Ø nach Schrumpfung (d)
mm
Wandstärke nach Schrumpfung (s)
mm
Länge
m
Einheit
Stück
Price
Euro*
Buy
14105
6,4 3,2 0,3 1,2 1 43.00
14106
6,4 3,2 0,3 1,2 5 166.00
14107
9,5 4,8 0,3 1,2 1 51.00
14108
9,5 4,8 0,3 1,2 5 204.00
14109
12,7 6,4 0,3 1,2 1 68.00
14110
12,7 6,4 0,3 1,2 5 225.00
14111
19 9,5 0,45 1,2 1 98.00
14112
19 9,5 0,45 1,2 5 386.00
14113
25,4 12,7 0,5 1,2 1 244.00
14114
25,4 12,7 0,5 1,2 5 549.00
