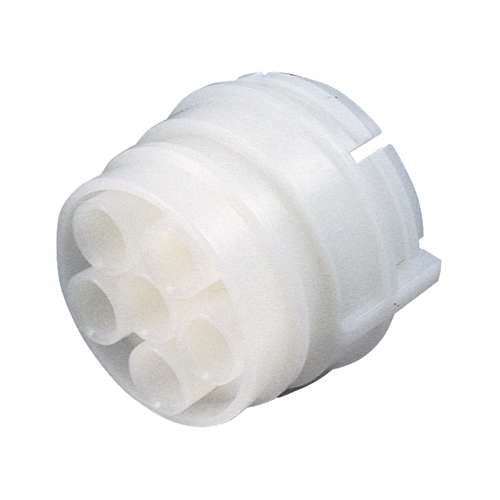

Multi-Lumen Quick-Disconnect Nipple made of POM for Six Flexible Conduits - Control Panel

Product specification Male coupling part. With port or shut-off and hose nozzle for control... more

Product specification

Male coupling part. With port or shut-off and hose nozzle for control panel mounting. Can be combined with all female coupling parts.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

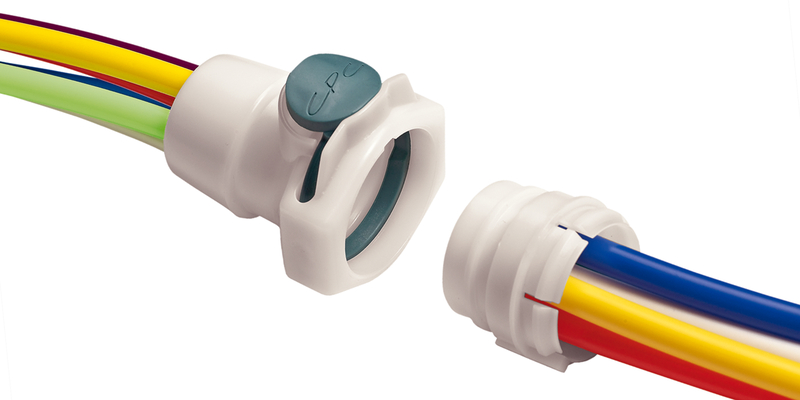

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information 6-Tube

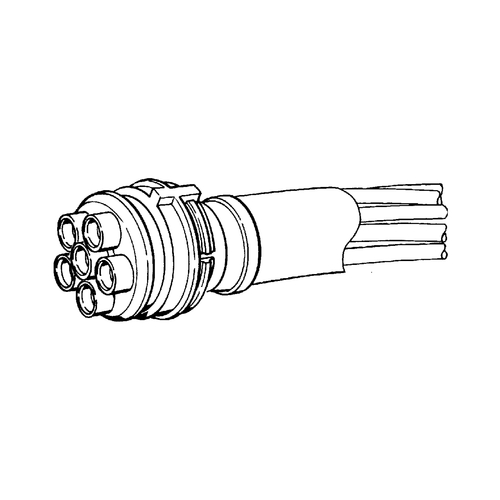

Simultaneous quick-release coupling system for six separate gas or liquid flexible conduits with parallel ports, consisting of a coupling casing with six nipple inserts (male type "V") and a coupling casing with six coupling inserts (female type "M") for front panel mounting (bulkhead screwed fitting). Female ("M") and male ("V") parts are optionally interchangeable, independently of the respective connection sizes.

Material:

Valve body: POM (polyacetal, polyoxymethylene)

Springs: stainless steel 316

Temperature range:

POM inserts: -40 to +80 °C

PP inserts: 0 to +80 °C

Max. operating pressure: 6.9 bar per line at +20 °C

Mounting type: coupling casing loose; coupling nipples optionally fixed front panel mounting with bulkhead screwed fitting

Item Image Connection Ventil Werkstoff Dichtung Werkstoff Einsätze Einheit
Stück
Price
Euro*
Buy
16222
Tülle 1,6 mm ohne NBR POM 1 26.00
16223
Tülle 3 mm ohne NBR POM 1 26.00
16224
Tülle 3,2 mm ohne NBR POM 1 26.00
16225
Tülle 1,6 mm mit NBR POM 1 147.00
16226
Tülle 3 mm mit NBR POM 1 147.00
16227
Tülle 3,2 mm mit NBR POM 1 147.00
16228
Tülle 1,6 mm ohne EPDM PP 1 29.00
16229
Tülle 3,2 mm ohne EPDM PP 1 29.00
