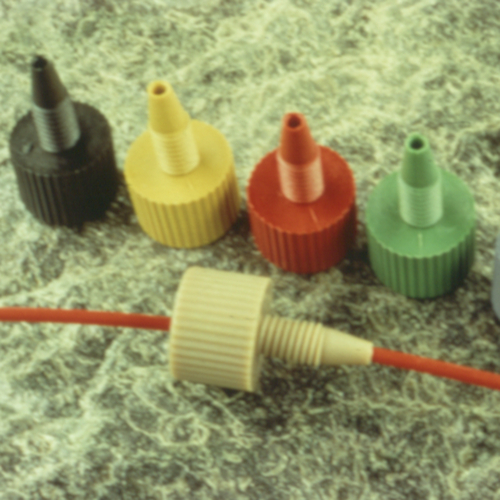

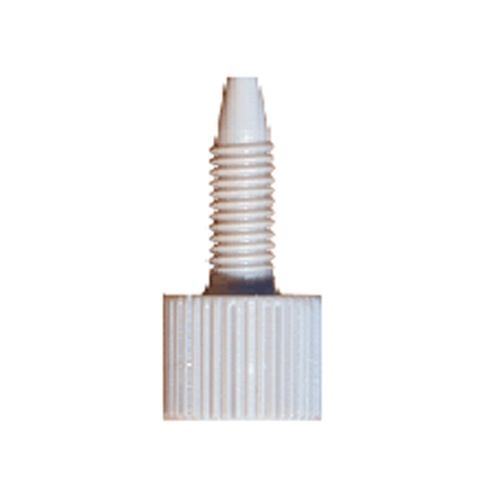

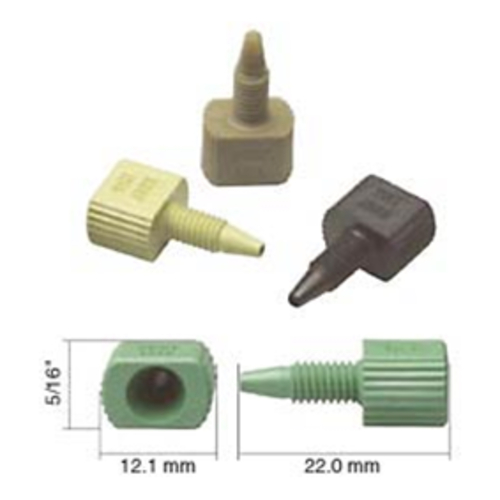

Straight Capillary Connector with Male Thread made of PEEK - one-piece
General Information Polymer material of highest stability Highest mechanical stability... more
General Information
Polymer material of highest stability
Highest mechanical stability
Pressure-resistant and impact-resistant
High dimensional stability in heat
Good dielectrical properties
Free of extractable substances
Odourless and tasteless
Physiologically absolutely safe
Biocompatible
Highest chemical resistance, but not resistant to conc. sulfuric acid, nitric acid, and chloronitrous acid (aqua regia)
Material: PEEK (polyether-etherketone)
Colour: yellow-brown
Max. temperature: +250 °C, for a short period +310 °C
Density: 1.4 g/cm3
El. breakdown strength: 19 kV/mm (according to ASTM D 149)
Therm. expansion coefficient: 4.7 x 10-5 mm/degree
Item | Image |
Tubing outside Ø inch
|
Außengewinde | Farbe |
max. Betr.-Druck1 bar
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
14751 |
|
1/16" | UNF 10-32 | natur | 450 | 3 | 49.00 | |
14752 |
|
1/16" | UNF 10-32 | gelb | 450 | 3 | 49.00 | |
14753 |
|
1/16" | UNF 10-32 | rot | 450 | 3 | 49.00 | |
14754 |
|
1/16" | UNF 10-32 | blau | 450 | 3 | 49.00 | |
14755 |
|
1/16" | UNF 10-32 | grün | 450 | 3 | 49.00 | |
14756 |
|
1/16" | UNF 10-32 | schwarz | 450 | 3 | 49.00 |
