Cross Connector made of Brass

Cross Connector made of Brass
Product specification Tubing connections on all four sides more

Product specification

Tubing connections on all four sides

No additional information available.

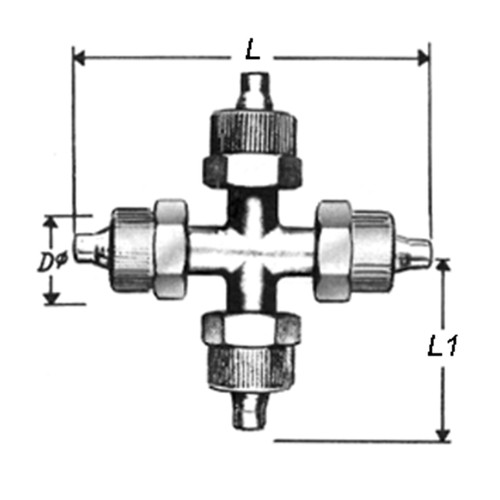

Item Image Tubing inside Ø
mm
Schlauch Außen-Ø
mm
D
mm
L
mm
L1
mm
Einheit
Stück
Price
Euro*
Buy
50276
2 3 8,5 24 12 5 39.00
50277
3 5 8,5 41 20,5 5 39.00
50278
4 6 11 50 25 5 72.00
50279
6 8 15 58 29 5 81.00
50280
6 10 15 58 29 5 81.00
50281
8 10 17 58 29 5 107.00
50282
8 12 17 58 29 5 107.00
