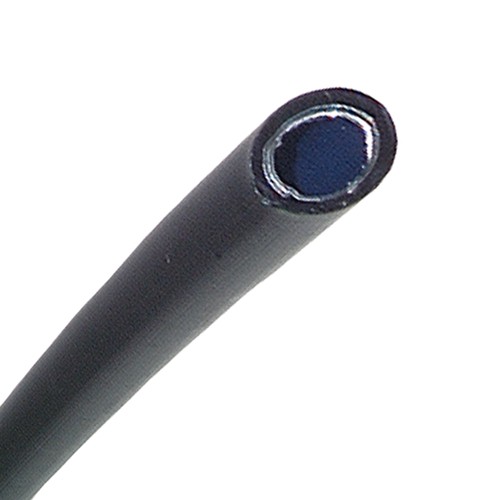

Plastic / Metal Composite Tubing

Plastic / Metal Composite Tubing
Description General Information
Description
Product specification Plastic / metal composite tubing for plug-in and clamp fittings... more
Close menu

Product specification

Plastic / metal composite tubing for plug-in and clamp fittings

Bendable by hand, yet dimensionally stable

Low weight: weighs only a fraction of conventional metal pipes

No special tools are required for handling and processing

Corrosion resistance is given

Best chemical resistance

Technical specification

Material:

Liner: HDPE (high density polyethylene)

Composite core: Al (aluminium foil)

Jacket: HDPE (high density polyethylene)

Colour: black

Temperature range: -25 to +65 °C, for a short time +80 °C

Gas-tightness: no permeability (gas-tight)

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 max. Betr.-Druck1
bar
 max. Betr.-Druck2
bar
 min. Biegeradius
mm
 Einheit
m
 Price
Euro* 		Buy
302807
4 6 30 17 19 5 88.00
302808
4 6 30 17 19 15 212.00
302809
5,3 8 30 17 25 5 135.00
302810
5,3 8 30 17 25 15 321.00
302811
6,9 10 30 17 32 5 176.00
302812
6,9 10 30 17 32 15 396.00
302813
8,2 12 24 12 40 5 210.00
302814
8,2 12 24 12 40 15 458.00
302815
9,8 14 24 12 63 5 247.00
302816
9,8 14 24 12 63 15 510.00
302817
10,8 15 24 12 70 5 253.00
302818
10,8 15 24 12 70 15 527.00
302819
15 18 17 10 175 5 266.00
302820
15 18 17 10 175 15 553.00
