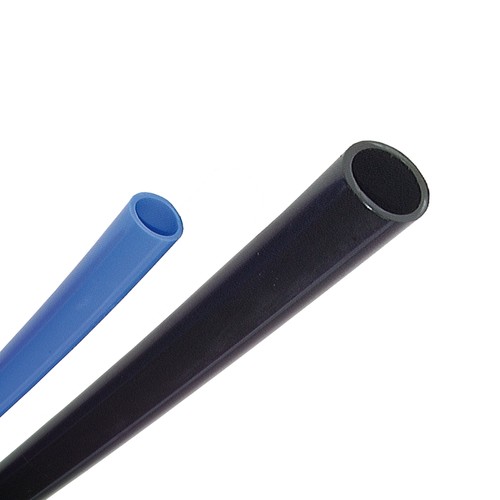

PUR Tube

Application area Flexible tubing for conveyance of gaseous and aqueous media as well as... more

Application area

Flexible tubing for conveyance of gaseous and aqueous media as well as mineral oils and hydrocarbons for hydraulic and pneumatic control systems.

Product specification

Metrically calibrated PUR tubing, narrowly tolerated outside diameters, particularly for use with THOMAFLUID^® plugin connectors, chemically resistant, not leachable, very flexible, well cold-bendable, pressure loadable and UV-resistant.

Technical specification

Material: PUR (polyurethane)

Colour: black or blue

Shore hardness D: 50°

Temperature range: -15 to +70 °C

Tolerance: at 4-8 mm ±0.1 mm; at 10-12 mm ±0.15 mm

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	max. Betr.-Druck² bar	min. Biegeradius mm	Farbe	Einheit m	Price Euro*
47196	2,5	4	10	5	10	schwarz	5	18.00
47197	2,5	4	10	5	10	schwarz	25	50.00
47198	3	5	13	5,5	13	schwarz	5	25.00
47199	3	5	13	5,5	13	schwarz	25	78.00
47200	4	6	9	4,5	15	schwarz	5	32.00
47201	4	6	9	4,5	15	schwarz	25	88.00
47202	5,5	8	8	4	20	schwarz	5	48.00
47203	5,5	8	8	4	20	schwarz	25	141.00
47204	7	10	8	4	25	schwarz	5	88.00
47205	7	10	8	4	25	schwarz	25	261.00
47206	8	12	9	4,5	35	schwarz	5	121.00
47207	8	12	9	4,5	35	schwarz	25	357.00
47208	2,5	4	10	5	10	blau	5	18.00
47209	2,5	4	10	5	10	blau	25	50.00
47210	3	5	11	5,5	13	blau	5	25.00
47211	3	5	11	5,5	13	blau	25	78.00
47212	4	6	9	4,5	15	blau	5	32.00
47213	4	6	9	4,5	15	blau	25	88.00
47214	5,5	8	8	4	20	blau	5	48.00
47215	5,5	8	8	4	20	blau	25	141.00
47216	7	10	8	4	25	blau	5	88.00
47217	7	10	8	4	25	blau	25	261.00
47218	8	12	9	4,5	35	blau	5	121.00
47219	8	12	9	4,5	35	blau	25	357.00
