Silicone Jacket Hot Air Tubing - two layer

Product specification Highest flexibility and elasticity at constant mechanical strength... more

Product specification

Highest flexibility and elasticity at constant mechanical strength

Good abrasion resistance

Robust type

Even at highest temperatures, no changes occur in the properties of material

Suitable for vacuum applications

Tubing made of an especially high-grade silicone-coated glass fabric

Good resistance to ozone, aging, and weather

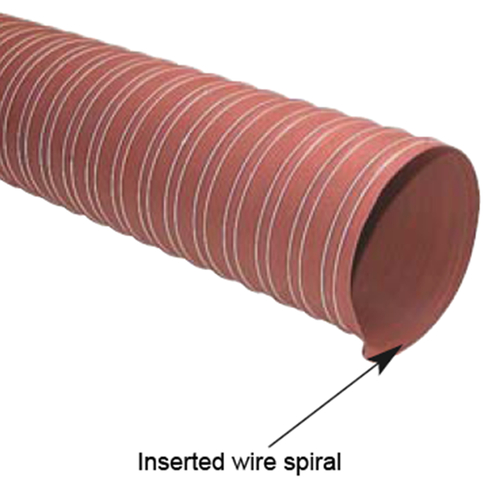

Fitted with inlying spiral made of zinc-plated spring steel and additional inner liner

Technical specification

Material: silicone-coated glass fabric

Colour: red

Temperature range: -85 to +310 °C

Insert: inlying spring spiral and additional inner liner (inner jacket). Thus, the tubing is smooth inside.

Option: ex factory extension of the max. production units (4 m) possible by splicing

No additional information available.
Item Image Inside Ø
mm
max. Betr.-Druck1
bar
Vakuum1
bar
Einheit
m
Price
Euro*
Buy
330256
19 2,5 -0,7 1 167.00
330257
19 2,5 -0,7 2 274.00
330258
19 2,5 -0,7 4 392.00
330259
25 2,5 -0,7 1 170.00
330260
25 2,5 -0,7 2 274.00
330261
25 2,5 -0,7 4 392.00
330262
32 2,5 -0,58 1 170.00
330263
32 2,5 -0,58 2 274.00
330264
32 2,5 -0,58 4 392.00
330265
38 2,4 -0,58 1 180.00
330266
38 2,4 -0,58 2 296.00
330267
38 2,4 -0,58 4 433.00
330268
44 2,4 -0,58 1 193.00
330269
44 2,4 -0,58 2 315.00
330270
44 2,4 -0,58 4 461.00
330271
51 2,4 -0,53 1 193.00
330272
51 2,4 -0,53 2 315.00
330273
51 2,4 -0,53 4 461.00
330274
63 2,2 -0,46 1 210.00
330275
63 2,2 -0,46 2 336.00
330276
63 2,2 -0,46 4 506.00
330277
70 2,2 -0,46 1 225.00
330278
70 2,2 -0,46 2 358.00
330279
70 2,2 -0,46 4 538.00
330280
76 2,1 -0,44 1 238.00
330281
76 2,1 -0,44 2 381.00
330282
76 2,1 -0,44 4 572.00
330283
83 2,1 -0,4 1 249.00
330284
83 2,1 -0,4 2 399.00
330285
83 2,1 -0,4 4 604.00
330286
89 2,1 -0,4 1 249.00
330287
89 2,1 -0,4 2 399.00
330288
89 2,1 -0,4 4 604.00
330289
95 2 -0,4 1 277.00
330290
95 2 -0,4 2 441.00
330291
95 2 -0,4 4 664.00
330292
102 1,8 -0,35 4 696.00
330293
114 1,7 -0,28 4 730.00
330294
127 1,5 -0,21 4 820.00
330295
152 1,1 -0,17 4 927.00
330296
178 0,8 -0,14 4 1,130.00
330297
203 0,6 -0,1 4 1,255.00
330298
254 0,4 -0,07 4 1,687.00
330299
305 0,2 -0,05 4 1,931.00
