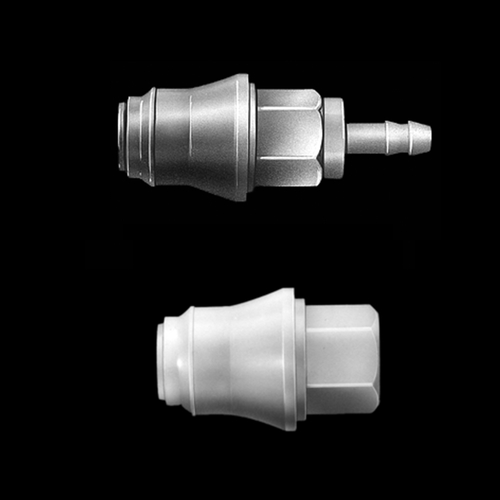

PVDF Quick-Disconnect Coupling, NW 7.0 mm

Product specification Female coupling part. With shut-off and hose nozzle or thread for... more

Product specification

Female coupling part. With shut-off and hose nozzle or thread for piping connection. Can be combined with all male coupling parts of nominal width 7.0 mm

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PVDF

PVDF is a chemically inert, biocompatible fluorocarbone material with excellent temperature resistance. It is resistant to alcohols, aldehydes, petrol, benzene and other aromatic hydrocarbons, chlorine gas, esters, glycols and motor oils, salt solutions, alkalis and acids.

General Information 7 mm nominal width

Temperature and pressure loadable plug-in coupling parts for higher flow rates, biocompatible, made of impact-resistant polymer material.

Material:

Valve body: PVDF, white (polyvinylidene fluoride)

Gaskets: FPM (fluorinated rubber)

Valve spring: stainless steel 1.4571

Colour: white

Nominal width: 7 mm

Plug diameter: approx. 10.3 mm

Temperature range: -20 to +120 °C

Max. operating pressure: 8 bar at +20 °C

Item Image Connection Ventil D
mm
Länge
mm
l1
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy
15946
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
Tülle 6 mm mit 26 81 22 21 1 91.00
15947
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
Tülle 9 mm mit 26 81 22 21 1 91.00
15948
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm

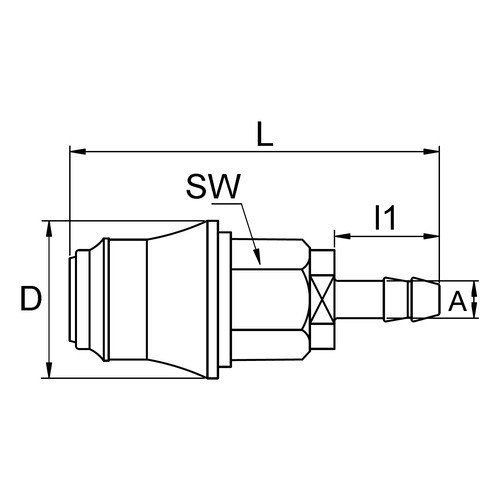

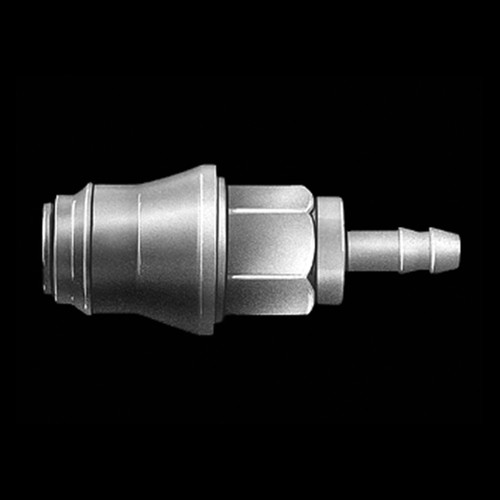

Tülle 13 mm mit 26 84 25 21 1 98.00
15949
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
A-Gewinde G 1/4" mit 26 70,5 9 21 1 91.00
15950
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm

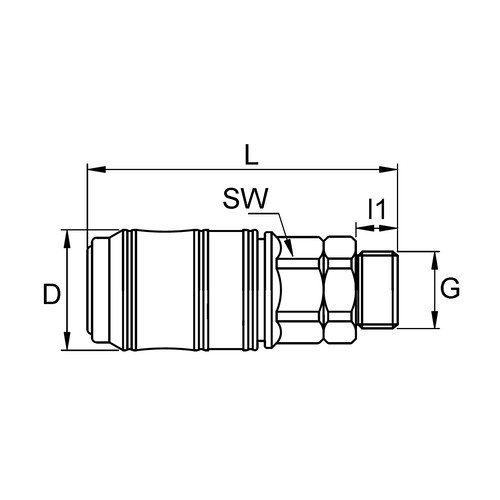

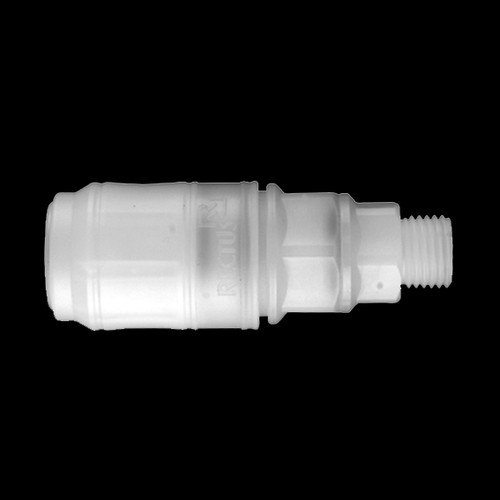

A-Gewinde G 3/8" mit 26 67 9 21 1 91.00
15951
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
A-Gewinde G 1/2" mit 26 73,5 12 21 1 98.00
15952
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
I-Gewinde G 1/4" mit 26 63,5 10 21 1 94.00
15953
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
I-Gewinde G 3/8" mit 26 63,5 13 21 1 94.00
15954
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm
PVDF Quick-Disconnect Coupling, NW 7.0 mm PVDF Quick-Disconnect Coupling, NW 7.0 mm

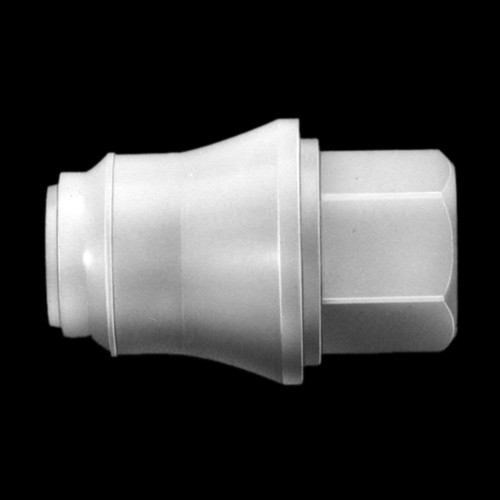

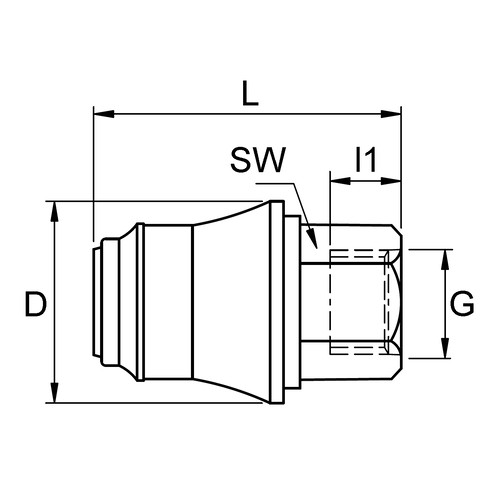

I-Gewinde G 1/2" mit 26 74,5 13 21 1 100.00
