Product specification

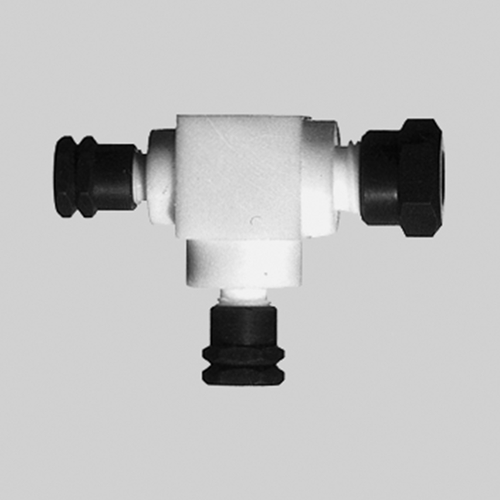

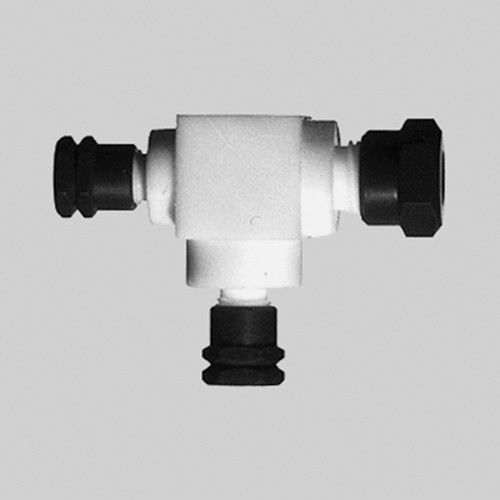

T-shaped reducing connector for tubings / pipes of different size made of rigid plastics or metal.
General Information MULTIFIT®
MULTIFIT®-couplings fix tubing / pipes by means of a compressed FPM O-ring. The higher the internal pressure is, the tighter is the joint. MULTIFIT®-connections are closed and opened within seconds.
Size A:
For PTFE tubing with outside Ø 0.6 to 1.0 mm (1/32”).
Size C:
For tubing used in many chromatography systems, with outside Ø 1.3 to 1.6 mm (1/16"). The cap nuts of size C and D have the same thread size. Therefore, the total versatile assortment of size D RCT®-couplings, cocks, and columns can be coupled to the 1/16" tubes after changing the cap nut and the sealing ring.
Size D:
For 1/8" tubes of the THOMACHROM®-chromatography system available in various materials and with inside diameters of 0.25 to 2.0 mm. Suitable for outside Ø 2.4 to 3.2 mm. The nuts of size D are marked with a notch.
Size E:
For 1/4" tubes and glass pipes of chromatography columns, suitable for outside Ø of 5.7 to 6.4 mm.
The series MULTIFIT® are available as standard type with PVC-U nuts for aqueous and non-aggressive solvents, and as SR-type with nuts made of PCTFE for temperatures up to +120 °C. O-rings made of FFKM are available for particularly aggressive liquids such as pyridine, ketones, and esters (to request separately).
Material:
Body: PTFE (Polytetrafluorethylen)
O-ring: FPM (Fluorkautschuk)
Max. operating pressure: 3 bar at +20 °C
| Item | Image |
Tubing outside Ø (A) mm
|
Schlauch Außen-Ø (B) mm
|
Größe | Werkstoff Muttern |
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 93025075 |
|
5,7 - 6,4 | 1,3 - 1,6 | E / C / C | PVC-U | 1 | 91.00 | |
| 93025076 |
|
5,7 - 6,4 | 2,4 - 3,2 | E / D / D | PVC-U | 1 | 91.00 | |
| 930250759 |
|
5,7 - 6,4 | 1,3 - 1,6 | E / C / C | PCTFE | 1 | 102.00 | |
| 930250769 |
|
5,7 - 6,4 | 2,4 - 3,2 | E / D / D | PCTFE | 1 | 102.00 | |
