Product specification

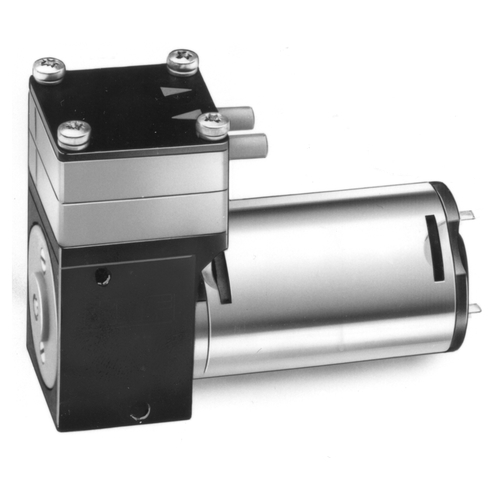

Efficient, self-priming miniature diaphragm pumps for delivery of liquids also against pressure, safe to run dry and mainetance-free, medium-contacting parts made of proven, chemically resistant polymer material combinations, low-voltage drive with direct current motor.
Technical specification
Material:
Suction head: up to 6 m water column; with PTFE diaphragm up to 5 m water column
Max. delivery head: 10 m water column
Max. working excess-pressure: 1 bar

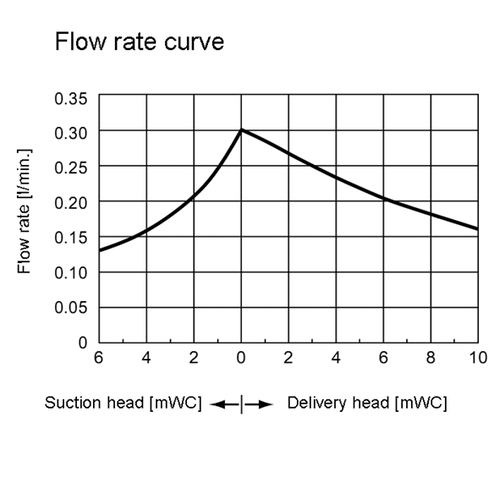

Max. delivery rate:
300 ml/min at atmospheric pressure (H2O +20 °C)
150 ml/min against 10 m water column
Pipe connection: parallel tubing connections, straight, for tubing ID 4.5 mm
Max. temperature of medium: +80 °C
Max. ambient temperature: +5 to +40 °C
Voltage: 12 or 24 V=
Amperage: 1.25; 0.69; 0.36 A at load
Protective system: IP 00
EMC-Directive: EN 55014
Dimension: 83 x 31 x 58 mm (L x W x H)
Weight: approx. 180 g
| Item | Image |
Voltage volt
| Werkstoff Pumpenkopf | Werkstoff Ventilplatte | Werkstoff Membran |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Voltage volt
|
Werkstoff Pumpenkopf
|
Werkstoff Ventilplatte
|
Werkstoff Membran
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 16595 |
|
12= | PP | EPDM | EPDM | 1 | 414.00 | |
| 16596 |
|
24= | PP | EPDM | EPDM | 1 | 414.00 | |
| 16598 |
|
12= | PP | FFKM | PTFE | 1 | 558.00 | |
| 16599 |
|
24= | PP | FFKM | PTFE | 1 | 558.00 | |
| 16601 |
|
12= | PVDF | FFKM | PTFE | 1 | 690.00 | |
| 16602 |
|
24= | PVDF | FFKM | PTFE | 1 | 690.00 |
