Magnetically Driven Centrifugal Pump, 220 V, with Tubing Connections

Application area Pumping out and circulating of liquids in the areas of chemical laboratory... more

Application area

Pumping out and circulating of liquids in the areas of chemical laboratory technology, biotechnology, food technology and environmental technology.

Product specification

Rugged centrifugal pump for liquid media of low particle content, contact-free, hermetical permanent magnetic coupling, delivery rate up to 17 l/min; drive with standard electric motor.

Technical specification

Material:

Casing / vane-wheel: PP

Vane-wheel shaft: ceramic

Drive system:

Voltage: 230 V~ / 50 Hz

Amperage: 0.17 A

Motor speed: 4,000 rpm

Protective system: IP 54

Max. operating pressure: 3.4 bar

Max. temperature of medium: +70 °C

Pump head: self-lubricating by conveying medium

Pipe connection:

Suction side: hose nozzle 3/4”

Pressure side: hose nozzle 1/4”

No additional information available.

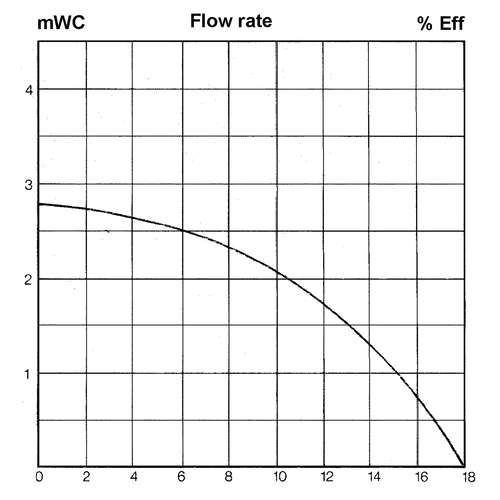

Item Image Max. delivery rate
l/min.
max. Förderhöhe
mWS
Spannung
Volt
Leistungsaufnahme
W
Einheit
Stück
Price
Euro*
Buy
58544
17,4 2,75 230~ 40 1 963.00
