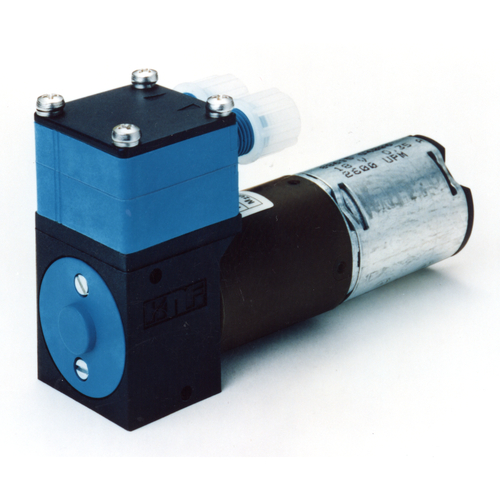

Diaphragm Metering Pump for Liquids - 170 ml/min with Low-Voltage Drive

Application area Delivery of liquids in the areas of medical and precision engineering,... more

Application area

Delivery of liquids in the areas of medical and precision engineering, biotechnology, analytical technology, environmental technology

Also for mobile use.

Product specification

Self-priming miniature diaphragm pumps for delivery and metering of small quantities of liquids also against higher pressures, safe to run dry and maintenance-free, medium-contacting parts made of proven, chemically resistant polymer material combinations, low-voltage drive with direct current motor.

Technical specification

Material:

Pump head: PP or PVDF

Valves: FFKM

Diaphragm: PTFE

Suction head: up to 5 m water column

Max. delivery head: 60 m water column

Max. delivery rate:

at atmospheric pressure (H2O +20 °C): 170 ml/min.

against 60 m water column: 100 ml/min.

Pipe connection: tubing screwed joints for tubing ID 4 mm / OD 6 mm

Max. temperature of medium: +80 °C

Max. ambient temperature: +5 to +40 °C

Voltage: 12 or 24 V=

Amperage: 0.61; 0.35 A at load

Protective system: IP 00

EMC-Directive: EN 55014

Dimension: 102 x 3 x 63 mm (L x W x H)

Weight: approx. 220 g

No additional information available.
Item Image Voltage
volt
Werkstoff Pumpenkopf Werkstoff Ventilplatte Werkstoff Membran Einheit
Stück
Price
Euro*
Buy
16612
12= PP FFKM PTFE 1 422.00
16613
24= PP FFKM PTFE 1 422.00
16614
12= PVDF FFKM PTFE 1 458.00
16615
24= PVDF FFKM PTFE 1 458.00
