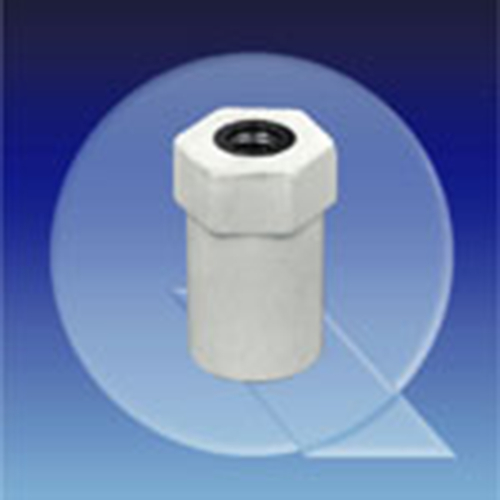

Insulating Spacer made of PEs - hexagonal, internal thread

Insulating Spacer made of PEs - hexagonal, internal thread

Technical specification Design: hexagon on one side; with internal thread on both sides more

Close menu

Technical specification

Design: hexagon on one side; with internal thread on both sides

General Information Thread inserts made of zinc-plated steel, threads mutually insulated... more

Close menu

General Information

Thread inserts made of zinc-plated steel, threads mutually insulated

Insulating spacers are available in five different designs: alternatively cylindrical or as hexagon, each with internal and external thread or with internal thread or external thread on both sides

Chemical features:

Resistant to fuels, brake fluid, mineral, lubricating and heating oils, acids and medium-strong alkalis.

Material specification:

The glass fibre reinforced polyester features high strength, stiffness and dimensional stability, high dimensional stability under heat, favourable dielectrical properties, good arc resistance, resistance to UV light and good resistance to weather, as well as good chemical resistance except to alkalis with a pH value >9.

Material: polyester, glass fibre reinforced (20 %)

Colour: white

Density: 1.84 g/cm³

Temperature range: up to +150 °C

Bending strength: 80 MPa (EN 63)

Modulus of elasticity in bending: 8,000 MPa (EN 63)

Notch impact strength (Charpy): 15 kJ/m² (ISO 179)

Dimensional stability under heat: > +200 °C (ISO 75), method A

Oxygen index: 23 % (ISO 4589)

Dielectric strength: 10 kV/mm

Dielectric constant: approx. 4.5 at 1 kHz (DIN 53483)

Volume resistivity: >10¹² Ohm (DIN 53482)

Comparative tracking index (CTI): >600 (DIN 53480)

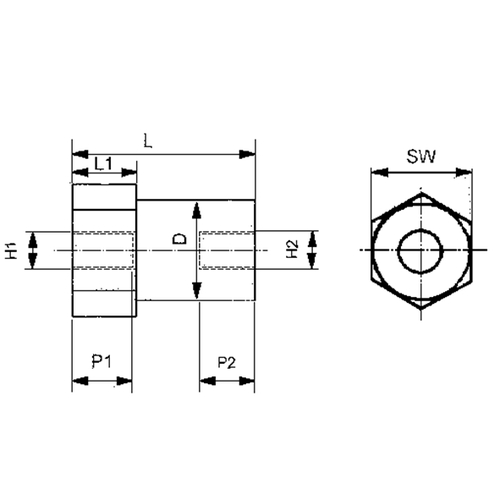

Item	L mm	Internal Thread P1	P1 mm	Innengewinde P2	P2 mm	D mm	SW mm	Einheit Stück	Price Euro*
333769	26	M6 x 1	8	M6 x 1	8	20	21	5	122.00
333770	26	M6 x 1	8	M6 x 1	8	20	21	15	324.00
333771	26	M8 x 1,25	8	M6 x 1	8	20	21	5	122.00
333772	26	M8 x 1,25	8	M6 x 1	8	20	21	15	324.00
333773	26	M8 x 1,25	8	M8 x 1,25	8	20	21	5	122.00
333774	26	M8 x 1,25	8	M8 x 1,25	8	20	21	15	324.00
333775	35	M6 x 1	8	M6 x 1	8	20	21	5	133.00
333776	35	M6 x 1	8	M6 x 1	8	20	21	15	351.00
333777	35	M8 x 1,25	8	M8 x 1,25	8	20	21	5	133.00
333778	35	M8 x 1,25	8	M8 x 1,25	8	20	21	15	351.00
333779	35	M8 x 1,25	8	M8 x 1,25	8	20	21	5	133.00
333780	35	M8 x 1,25	8	M8 x 1,25	8	20	21	15	351.00
