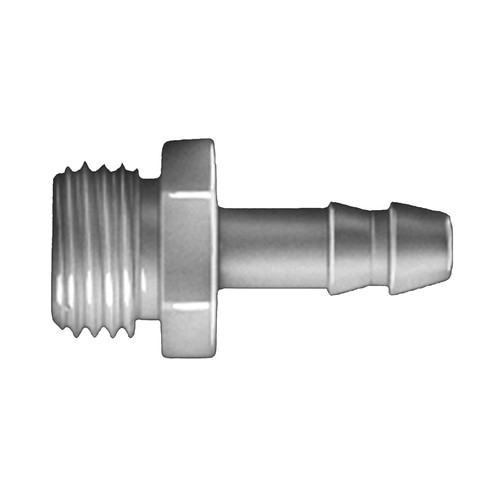

Straight Barb Connector with Male Thread made of PVDF

Preview: Straight Barb Connector with Male Thread made of PVDF Preview: Straight Barb Connector with Male Thread made of PVDF
Straight Barb Connector with Male Thread made of PVDF
Straight Barb Connector with Male Thread made of PVDF

Description General Information
Description
Product specification Male G-thread on one side, hose nozzle on the other side more
Close menu

Product specification

Male G-thread on one side, hose nozzle on the other side

General Information
General Information Resistance to alcohols, aldehydes, petrol, benzene and other aromatic... more
Close menu

General Information

Resistance to alcohols, aldehydes, petrol, benzene and other aromatic hydrocarbons, chlorine gas, esters, glycols, motor oils, salt solutions, alkalis and acids.

Material: PVDF (polyvinylidene fluoride)

Colour: transparent/white

Temperature range: -20 to +120 °C

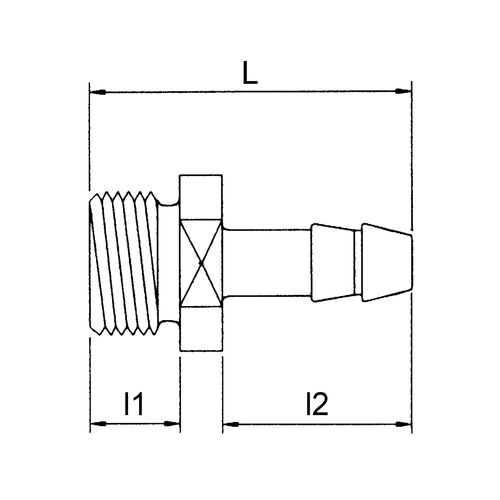

Item Image Tubing inside Ø
mm
 Außengewinde l1
mm
 l2
mm
 L
mm
 SW
mm
 Einheit
Stück
 Price
Euro* 		Buy
14707
4 G 1/4" 8 17 29 14 3 39.00
14708
6 G 1/4" 8 17 29 14 3 44.00
14709
6 G 3/8" 9 22 39 17 3 50.00
14710
9 G 3/8" 9 22 39 17 3 53.00
14711
13 G 3/8" 9 25 42 17 3 56.00
