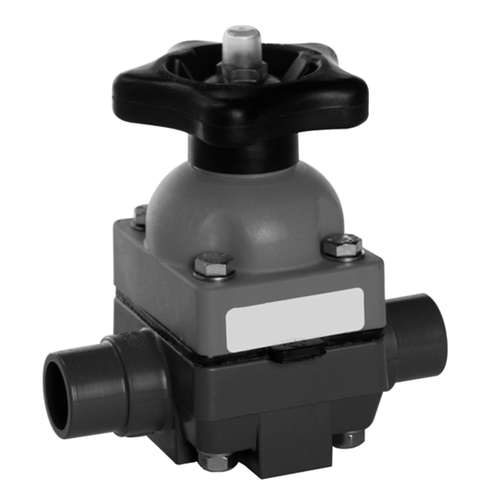

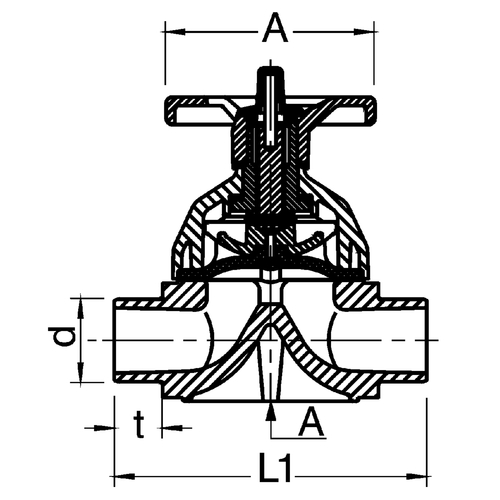

Diaphragm Valve made of PVC-U

Product specification High impact toughness, but risk of breakage at low temperatures Good... more

Product specification

High impact toughness, but risk of breakage at low temperatures

Good mechanical stability

Very good dielectrical properties

Hardly inflammable

Technical specification

Material of flow body:

Housing lower part: PVC-U (rigid polyvinyl chloride)

Housing upper part: PP (polypropylene), glass fibre-reinforced

Shaped diaphragm: EPDM (ethylene-propylene-diene rubber); PTFE (polytetrafluoroethylene) on media side, with vulcanized-in, extremely tearing-resistant fabric insert

Valve type: diaphragm valve

Flow direction: optional

Mounting position: optional

Max. operating pressure: 10 bar at +20 °C

Installation size: DN 15 - DN 50

Media: neutral and aggressive liquid and gaseous media, also with solids content with concentration and grain sizes commonly used in process engineering

Temperature range:

Flow body: -10 to +60 °C

Diaphragm: EPDM from -40 to +90 °C; PTFE from -40 to +120 °C

Connection: cementing spigot according to DIN 8063 or screw joint with cementing socket or GRP flange

General Information Use for chemical and pharmaceutical industry, environmental technology... more

General Information

Use for chemical and pharmaceutical industry, environmental technology and process engineering, surface engineering, water treatment technology and sewage technology, plant and apparatus construction.

High flow rates or kv-values

Low flow resistance

Increased endurance strength

Good chemical resistance

Safe in operation and low-maintenance
