PA Spiral Tubing with Rotatable Male R-Threads

PA Spiral Tubing with Rotatable Male R-Threads

Application area Conveyance of neutral, liquid, and gaseous media in moving and vibrating... more

Close menu

Application area

Conveyance of neutral, liquid, and gaseous media in moving and vibrating systems such as hydraulic and pneumatic robot control systems, automated dosing systems in industrial plants, as well as in experimental prototype building and pilot plants of physics, biotechnology, chemistry, and medical engineering.

Product specification

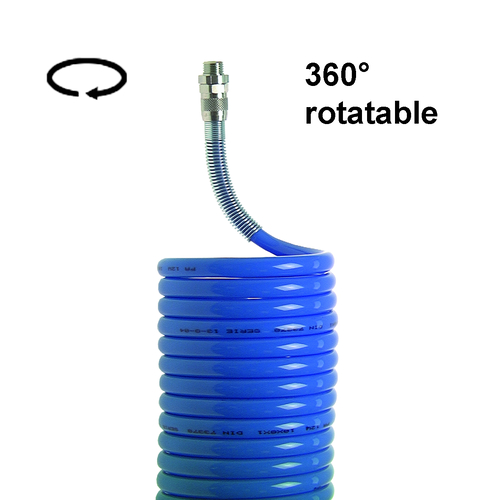

Permanent-helically coiled, extremely flexible polyamide tubing, metrically calibrated. Chemically inert, free of leachable components, resistant to abrasion, pressure and temperature loadable. On both ends, fixed antikink devices and brass-nickelized conical R 1/4" outer threaded pieces, with inner and outer hexagon each for straight connection preferably with THOMAFLUID^® plug-in couplings of type range ELGEES PA 3100. Low weight, two practice-oriented dimensions of 6x4 mm and 8x6 mm respectively; proven, fatigue-resistingly recovering working lengths of 2, 4 and 6 m.

Guaranteed vacuum-resistant up to 755 mmHg (99% vacuum).

Technical specification

Material: PA 12 (polyamide 12)

Colour: blue or orange

Shore hardness D: 60°

Temperature range: -20 to +80 °C

Max. operating pressure: 20 bar at +20 °C

Vacuum resistance: 99 %

Tolerances outside Ø: +0.05 to -0.1 mm

Connection nozzles: on one side 100 mm; on the other side 300 mm
