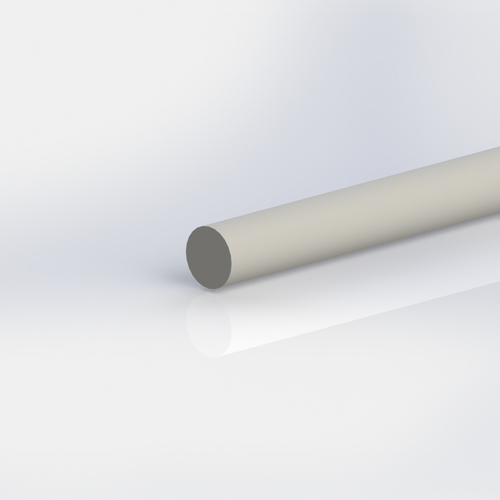

Solid Rod made of Glass Fiber Reinforced Plastic GFRP

Product specification Use in laboratory technology, electroplating technology and electrical... more

Product specification

Use in laboratory technology, electroplating technology and electrical engineering.

Linear stress-strain behavior

Low weight

Electrically insulating

Chemical-resistant

Corrosion-resistant and weatherproof

UV-resistant

Halogen-free

High economic efficiency

High stability

Metal-free, unmagnetic

Thermally insulating

The unsaturated polyester resins are among the most commonly used resins in composite materials. UP resins are a colourless to slightly yellow solution of unsaturated polyester in a reactive solvent, usually styrene. At room temperature or by supply of heat, they are cured, whereby a heat reaction is released.

Technical specification

Material:

Resin: polyester

Reinforcing fibers: glass fibers

Design: pultruded

Colour: dark gray / white

Density: 2 g/cm3

Temperature range: -100 to +155 °C, for a short time +180 °C

Impact toughness (IZOD): 300 kJ/m2

Interlaminar shear strength: 25 MPa

Volume resistivity: 1010 - 1015 Ohm * cm

Surface resistance: 1010 - 1015 Ohm

Breakdown strength: 5 - 10 kV/mm

Comparative tracking index (CTI): KA 3c / KB 500 / KC 600

Dielectric constant: <5

Coefficient of linear thermal expansion: 12 x 10-6 1/K

Thermal conductivity: 0.2 - 0.6 W/m*K

Specific heat capacity: 1.0 - 1.2 kJ/kg*K

Water absorption: 0.15 %

Dimensional stability by Martens method: +200 °C

Resistance to glow heat: level 2b

Elongation at break: 1.0 - 1.8 %

Barcol hardness: >40

Tolerances diameter: 0 - 10 mm ±0.20 mm
10 - 20 mm ±0.30 mm
20 - 40 mm ±0.35 mm

Flammability rating: B2, UL 94 V-1, ASTM D635

Burning behaviour: Self-extinguishing

All following measured values are depending on the test direction: parallel (II) or perpendicular (+) to the fibers.

Tensile strength: II: 250 MPa; +: 30-80 MPa

Tension stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 20 MPa (short-term); 15 MPa (long-term)

Bending strength: II: 250 MPa; +: 30-80 MPa

Bending stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 20 MPa (short-term); 15 MPa (long-term)

Tensile modulus strength: II: 23,000 MPa; +: 8,000 MPa

Tensile modulus bending: II: 25,000 MPa; +: 9,000 MPa

Compressive strength: II: 450 MPa; +: 90 MPa

Compressive stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 25 MPa (short-term); 20 MPa (long-term)

Compressive modulus: II: 1,000 MPa; +: 4,000 MPa

No additional information available.

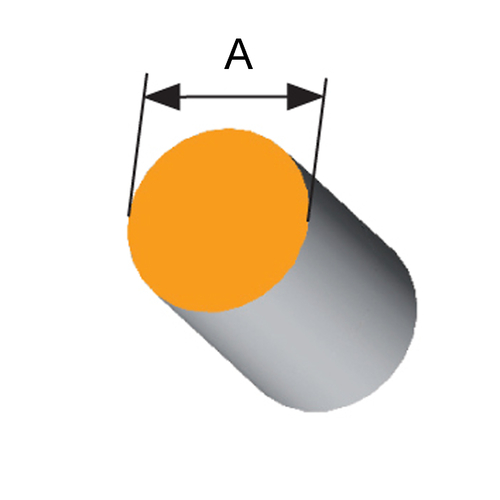

Item Image Outside Ø
mm
Länge
mm
Einheit
Stück
Price
Euro*
Buy
306480
2 500 1 22.00
306481
2 1.000 1 39.00
306482
3 500 1 24.00
306483
3 1.000 1 43.00
306484
4 500 1 26.00
306485
4 1.000 1 50.00
306486
5 500 1 30.00
306487
5 1.000 1 54.00
306488
6 500 1 37.00
306489
6 1.000 1 67.00
306490
8 500 1 41.00
306491
8 1.000 1 71.00
306492
9 500 1 50.00
306493
9 1.000 1 86.00
306494
10 500 1 52.00
306495
10 1.000 1 90.00
306496
12 500 1 65.00
306497
12 1.000 1 112.00
306498
16 500 1 80.00
306499
16 1.000 1 137.00
306500
18 500 1 97.00
306501
18 1.000 1 167.00
306502
20 500 1 103.00
306503
20 1.000 1 178.00
