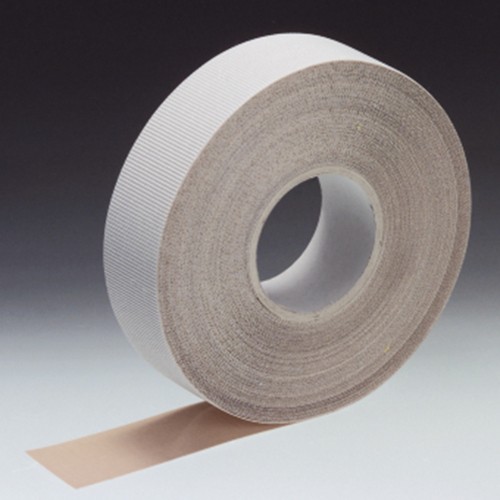

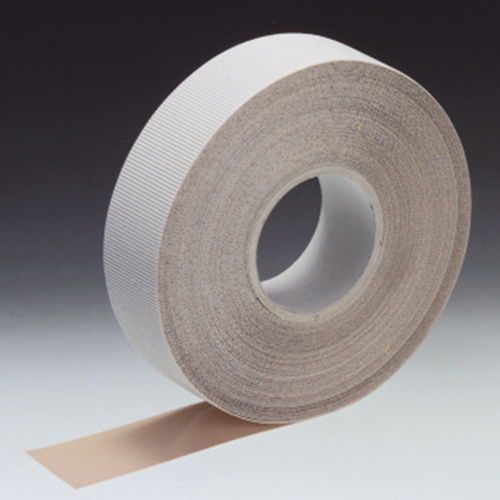

High-Tech Glass Tape - PTFE-Bonded, self-adhesive at one side

Application area Self-adhesive, antiadhesive finish on foil welding devices, drying and... more

Application area

Self-adhesive, antiadhesive finish on foil welding devices, drying and coating cylinders, and drum dryers.

Slip coating at chutes, funnels, guides, slide pipes at packaging machines.

Self-adhesive insulation foil for electrical engineering, chemical and process engineering.

Product specification

Cloth with surface finish suitable for most applications; good material combination of mechanical and antiadhesive properties.

Extremely antiadhesive surface

Minimal coefficient of sliding friction

Extremely high temperature resistance

Extraordinary chemical resistance

High tensile strength and dimensional stability

Low thermal expansion

Good dielectric properties

Transmissive for microwaves and UV-light

Non-toxic

Resistant to mildew, bacteria, and mould

Technical specification

Material: PTFE (polytetrafluoroethylene)

Colour: brown

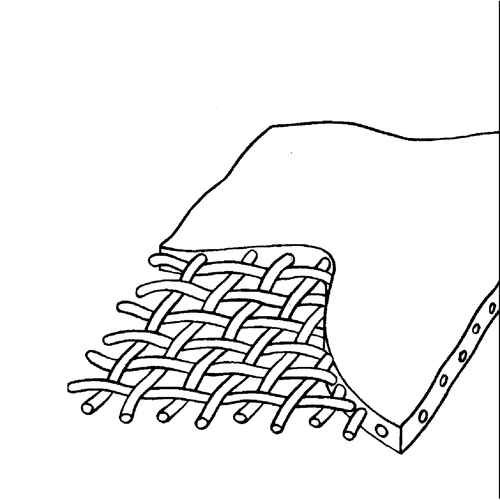

Design: PTFE-impregnated glass fabric, self-adhesive

Adhesive: silicone adhesive, adhesive layer covered with removable PVC-film

Adhesive layer: approx. 0.05 mm

Temperature range: -73 to +260 °C

No additional information available.

Item	Width mm	Stärke mm	Einheit m	Price Euro*
301198	13	0,073	33	116.00
301200	25	0,073	5	125.00
301201	25	0,073	10	228.00
301202	50	0,073	3	135.00
301203	50	0,073	5	187.00
301204	100	0,073	1	125.00
301205	100	0,073	3	288.00
301206	200	0,073	1	141.00
301207	200	0,073	3	327.00
301208	13	0,122	5	81.00
301209	13	0,122	10	132.00
301210	25	0,122	5	146.00
301211	25	0,122	10	244.00
301212	50	0,122	3	162.00
301213	50	0,122	5	217.00
301214	100	0,122	1	107.00
301215	100	0,122	3	272.00
301216	300	0,122	1	228.00
301217	300	0,122	3	496.00
301222	13	0,225	5	118.00
301223	13	0,225	10	195.00
301224	25	0,225	3	125.00
301225	25	0,225	5	174.00
301226	50	0,225	1	86.00
301227	50	0,225	3	198.00
301228	100	0,225	1	130.00
301229	100	0,225	3	290.00
