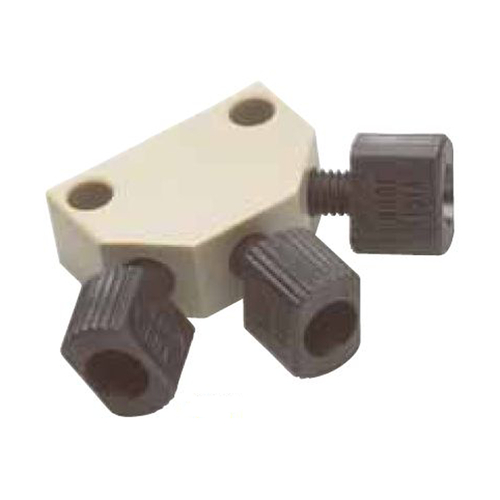

High-Pressure Capillary Mixing Chamber for Media made of PEEK

Preview: High-Pressure Capillary Mixing Chamber for Media made of PEEK Preview: High-Pressure Capillary Mixing Chamber for Media made of PEEK
High-Pressure Capillary Mixing Chamber for Media made of PEEK
High-Pressure Capillary Mixing Chamber for Media made of PEEK

Description General Information
Description
Product specification A unique, more thorough mixing results from the turbulence generated by... more
Close menu

Product specification

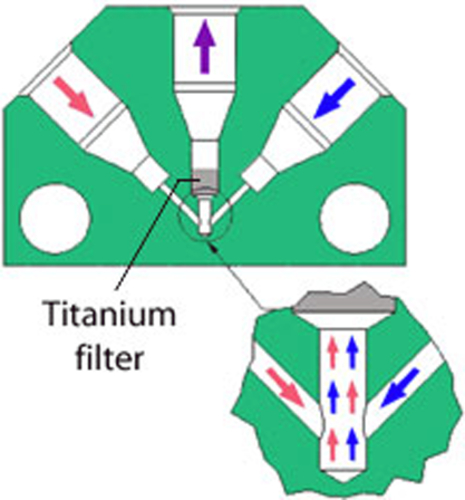

A unique, more thorough mixing results from the turbulence generated by the introduction angle of the solvents as well as by the flow through our titanium filter element. The biocompatible tee can be used for high pressure gradient mixing as well as for post column reactions.

High pressure gradient mixing

Post column reactions

Completely biocompatible

Built-in protein-friendly titanium filter

Complete with fingertight fittings

Technical specification

Dead volume: <4 µl

Counterpressure: <1 bar at 1 ml/min.

Pressure stability: 350 bar

Filter porosity: 10 µm

General Information
more
Close menu
No additional information available.
Item Image Tubing outside Ø
inch
 max. Betr.-Druck1
bar
 Innengewinde Einheit
Stück
 Price
Euro* 		Buy
14734
1/16" 350 UNF 10-32 1 236.00
