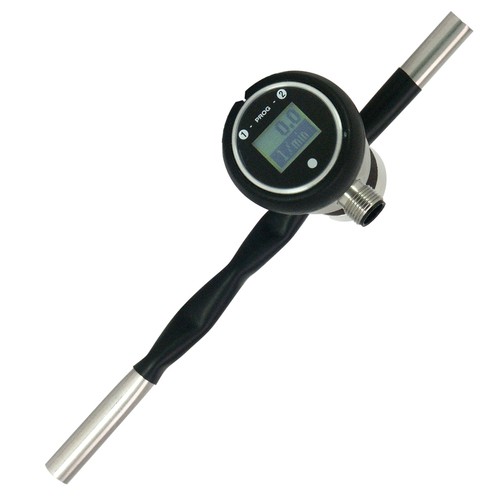

High-Tech Flowmeter for Low Flow Rates - digital

High-Tech Flowmeter for Low Flow Rates - digital

Application area Laboratory technology, analytical technology, measurement technology, plant... more

Application area

Laboratory technology, analytical technology, measurement technology, plant technology, engineering operations and maintenance

Product specification

Flow transmitter for low flow rates

Only a medium-contacting material

No movable parts (rotor) in monitoring medium

Analogue output

Easily readable, backlit LCD display

Low pressure loss

The device is linearized and temperature-compensated

The flow rate is indicated in absolute units (e.g. l/min)

Functional principle: The integrated evaluation electronics contains a microcontroller which indicates the sensor signal. Thereby, two adjustable limit values monitor the analog output. The exceedance of the limit values is indicated by blinking of a red LED. A plain text message appears on the LCD display. At the same time, the push-pull execution is indicated by both switching outputs. The measurement is transmitted as an analog signal (4 - 20 mA or 0 - 10 V=). Both the lower and the upper value of the analog output are programmable via a scaling of the indicating range.

Accessories: THOMAFLUID^®-round plug connectors, items 341697 - 341702

Technical specification

Material: stainless steel 1.4571, medium-contacting

Measurement range: 0.01 - 10 l/min.

Measuring principle: calorimetric

Temperature range: 0 to +70 °C

Max. operating pressure: 10 bar

Pressure loss: 0.3 bar (at max. flow)

Protection class: IP 65

Voltage: 24 V= ±10 %

Amperage: max. 100 mA

Limit values: 2 as minimum or maximum alarm adjustable limit values with individual hysteresis

Limit switches: 2 push-pull outputs

Analog output / signal: 4 - 20 mA or 0 - 10 V=

Electr. connection: for round plug connector M12x1, 5-pin

Weight: 200 g

Close menu

No additional information available.

Item	Measuring range liquids l/min.	Ø-Rohr mm	Signalausgang	Einheit Stück	Price Euro*
341691	0,01 - 2	6	0 - 10 V	1	980.00
341692	0,01 - 2	6	4 - 20 mA	1	980.00
341693	0,025 - 5	8	0 - 10 V	1	980.00
341694	0,025 - 5	8	4 - 20 mA	1	980.00
341695	0,05 - 10	10	0 - 10 V	1	980.00
341696	0,05 - 10	10	4 - 20 mA	1	980.00
