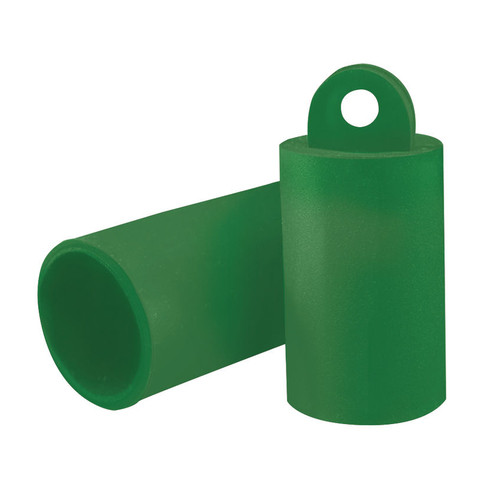

Pull Tab Cap made of PVC-P (plasticized PVC, soft) - oil-resistant

Product specification Ideally suitable for use with oil and lubricants (more resistant than... more

Product specification

Ideally suitable for use with oil and lubricants (more resistant than black PVC)

Technical specification

Material: PVC-P (polyvinyl chloride, soft)

Colour: green

Shore hardness A: 65° ±5°

Density: 1.17 - 1.20 g/cm3

Temperature range: -29 to +66 °C

Tensile strength: 20 N/mm2

Linear expansion: min. 300 %

Tear propagation resistance: 3.5 kN/m

Dielectric constant: 4.2 - 8 at 50 Hz

No additional information available.

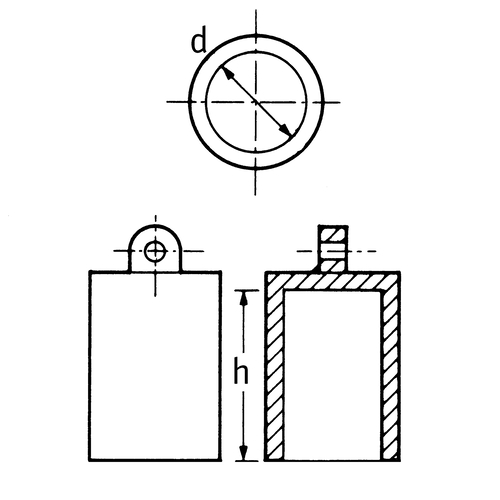

Item Image d
mm
h
mm
Unit
piece
Price
Euro*
Buy
315098
5 23,5 25 38.00
315099
5 23,5 50 64.00
315100
6 25 25 38.00
315101
6 25 50 64.00
315102
7 24 25 38.00
315103
7 24 50 64.00
315104
8 24,5 25 48.00
315105
8 24,5 50 82.00
315106
9 25 25 48.00
315107
9 25 50 82.00
315108
10 29,5 10 26.00
315109
10 29,5 25 54.00
315110
11 29 10 26.00
315111
11 29 25 54.00
315112
12 29 10 26.00
315113
12 29 25 54.00
315114
13 29 10 32.00
315115
13 29 25 66.00
315116
14 28,5 10 32.00
315117
14 28,5 25 66.00
315118
15 29,5 10 34.00
315119
15 29,5 25 74.00
315120
16 28 10 34.00
315121
16 28 25 74.00
315122
17 29,5 10 34.00
315123
17 29,5 25 74.00
315124
18 28,5 10 38.00
315125
18 28,5 25 80.00
315126
19 29,5 10 38.00
315127
19 29,5 25 80.00
315128
20 28,5 10 38.00
315129
20 28,5 25 80.00
315130
21 34,5 5 28.00
315131
21 34,5 15 68.00
315132
22 34 5 28.00
315133
22 34 15 68.00
315134
23 34,5 5 28.00
315135
23 34,5 15 68.00
315136
24 34 5 30.00
315137
24 34 15 72.00
315138
25 34,5 5 30.00
315139
25 34,5 15 72.00
315140
26 34,5 5 34.00
315141
26 34,5 15 86.00
315142
27 33,5 5 34.00
315143
27 33,5 15 86.00
315144
28 33,5 5 40.00
315145
28 33,5 15 98.00
315146
29 35 5 40.00
315147
29 35 15 98.00
315148
30 34,5 5 42.00
315149
30 34,5 15 108.00
