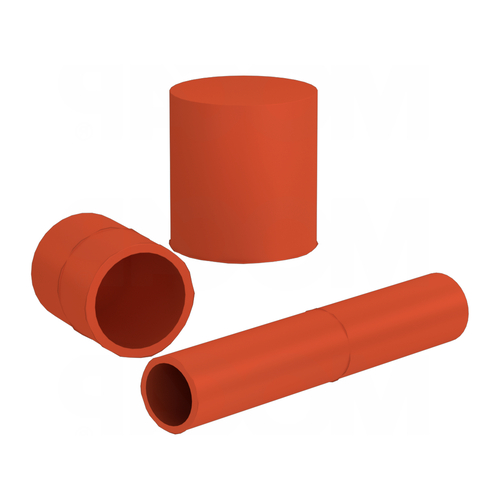

High-Therm Round Cap made of Silicone - high-temperature resistant

Product specification Extra high-temperature resistant caps, suitable for applications with... more

Product specification

Extra high-temperature resistant caps, suitable for applications with Elco varnishing systems and EPL powder coating systems

Reusable

No color bleeding, thus clean thread pitches and surfaces

Easy removal and fitting

Material specification:

Good elastic behavior; very good elongation at break and tearing strength; suitable for low temperature applications, very long service life, reusable, no curing and melting

Technical specification

Material: silicone (silicone rubber)

Colour: red

Temperature range: -76 to +280 °C, for a short time +300 °C

Shore hardness A: 50 - 60°, 70° for greater dimensions

Tearing strength: 16 N/mm

Elongation at break: 300 %

Breaking strength: 6 MPa

No additional information available.

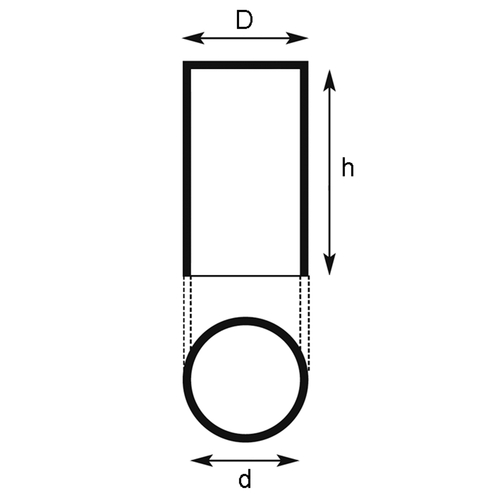

Item Image For thread d
mm
D
mm
h
mm
Unit
piece
Price
Euro*
Buy
339840
M3 2,5 5,1 25,4 10 40.00
339841
M3 2,5 5,1 25,4 20 62.00
339842
R 1/8" 3,1 5,7 25,4 10 42.00
339843
R 1/8" 3,1 5,7 25,4 20 66.00
339844
M4 3,8 6,6 25,4 10 44.00
339845
M4 3,8 6,6 25,4 20 70.00
339846
M5 4,5 7,3 25,4 10 46.00
339847
M5 4,5 7,3 25,4 20 74.00
339848
M6 5,6 8,6 25,4 10 48.00
339849
M6 5,6 8,6 25,4 20 76.00
339850
M6 5,7 8,7 38,1 10 52.00
339851
M6 5,7 8,7 38,1 20 82.00
339852
R 1/4" 5,9 8,7 38,1 10 56.00
339853
R 1/4" 5,9 8,7 38,1 20 88.00
339854
M8 7,5 10,3 38,1 10 68.00
339855
M8 7,5 10,3 38,1 20 108.00
339856
27 30,2 44,5 5 86.00
339857
27 30,2 44,5 10 128.00
339858
30,1 33,3 44,5 5 94.00
339859
30,1 33,3 44,5 10 140.00
339860
31,8 35 44,5 5 96.00
339861
31,8 35 44,5 10 144.00
339862
34,9 38,1 50,8 5 118.00
339863
34,9 38,1 50,8 10 178.00
339864
38,1 41,3 50,8 5 124.00
339865
38,1 41,3 50,8 10 186.00
