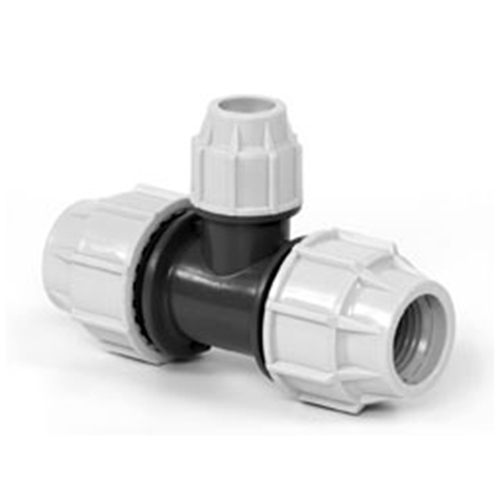

T-Shaped Reducing Pipe Connector made of PP - macro
| Item |

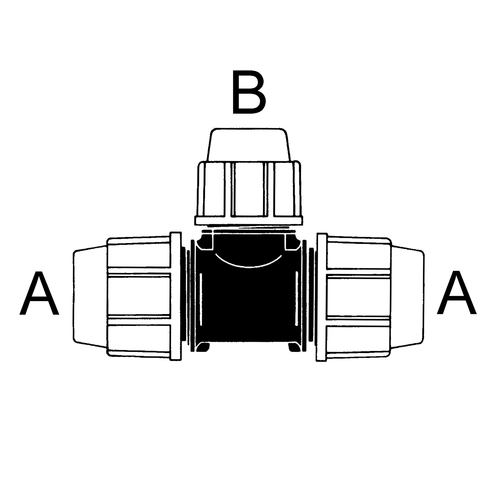

Pipe outside Ø (A) mm
|
Rohr Außen-Ø (B) mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|
| 49825 | 20 | 16 | 4 | 78.00 | |
| 49826 | 25 | 20 | 3 | 81.00 | |
| 49827 | 32 | 25 | 3 | 100.00 | |
Similar products
Viewed
Product specification
T-shaped reducing coupling for pipes of different outside diameters
General Information
Laboratory-oriented straight, reducing, and elbow pipe couplings made of rigid, resistant PP (polypropylene) with chemically stable NBR (nitrile rubber) sealing; usable up to +60 °C.
The coupling body made of PP runs into threads with cap nuts at the ends. At each end of the coupling body a sealing ring made of nitrile rubber is fitted in, which is kept in place by means of an inside cross-grooved press bushing made of acetal resin.
The prepared pipe is slipped into the coupling body and solidly screwed with the cap nut.
A resilient, inside cross-grooved press cone (ferrule) made of acetal resin is slipped on the pipe to be connected in such a way that the pulled through end projects approx. 40 mm.
| Item | Image |
Pipe outside Ø (A) mm
|
Rohr Außen-Ø (B) mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|
| 49825 |
|
20 | 16 | 4 | 78.00 | |
| 49826 |
|
25 | 20 | 3 | 81.00 | |
| 49827 |
|
32 | 25 | 3 | 100.00 | |
