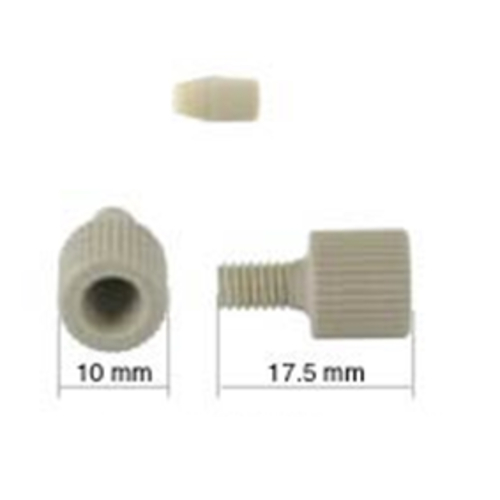

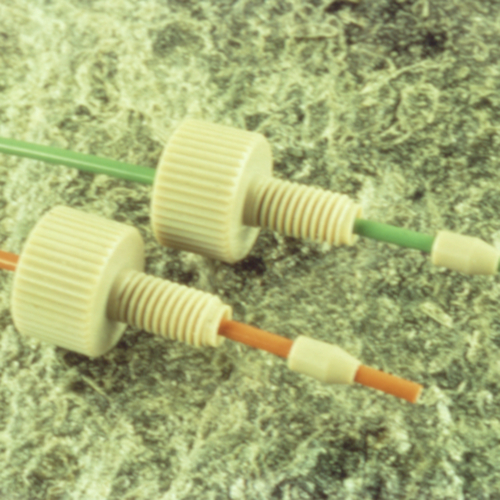

Straight Capillary Connector with Male Thread made of PEEK - two-part

No additional information available.
General Information Polymer material of highest stability Highest mechanical stability... more

General Information

Polymer material of highest stability

Highest mechanical stability

Pressure-resistant and impact-resistant

High dimensional stability in heat

Good dielectrical properties

Free of extractable substances

Odourless and tasteless

Physiologically absolutely safe

Biocompatible

Highest chemical resistance, but not resistant to conc. sulfuric acid, nitric acid, and chloronitrous acid (aqua regia)

Material: PEEK (polyether-etherketone)

Colour: yellow-brown

Max. temperature: +250 °C, for a short period +310 °C

Density: 1.4 g/cm3

El. breakdown strength: 19 kV/mm (according to ASTM D 149)

Therm. expansion coefficient: 4.7 x 10-5 mm/degree

Item Image Tubing outside Ø
inch
Außengewinde Farbe max. Betr.-Druck1
bar
Einheit
Stück
Price
Euro*
Buy
14727
1/16" UNF 10-32 natur 280 3 68.00
