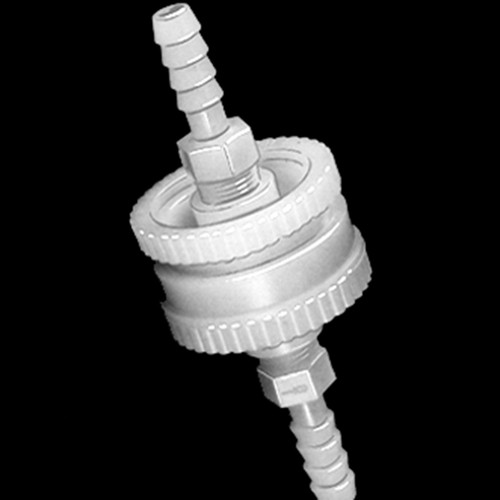

Filter Holder made of POM - In-Line

Filter Holder made of POM - In-Line
Application area For in-line purification of air and gases and for fluid filtration Product... more

Application area

For in-line purification of air and gases and for fluid filtration

Product specification

For direct integration in the line system

Conical inlet gives rise to even sample distribution on the surface

Also usable with 20 mm prefilter allowing higher throughput by it

Technical specification

Material:

Housing: POM (acetal resin)

Support sieve: stainless steel 1.4401 (SS 316)

Tubing olive: PA 6.6 (polyamide 66, nylon)

O-ring: FPM (Fluorinated rubber)

Filter diameter: 25 mm

Prefilter diameter: 20 mm

Effective filtering surface: 3.7 cm2 (22 mm diameter)

Overall length: 20 mm

Filter holder diameter: 35 mm

Connection: In- and outlet adapter with NPT 1/8" on 6.4 mm ID tubing olive

Max. temperature: in air +85 °C, for a short time up to +121 °C, in water +65 °C

Max. operating pressure: in air/gas 1.4 bar; in water 2.8 bar

Sterilization: autoclavable (+121 °C)

No additional information available.
Item Image Ø filter
mm
Tubing inside Ø
mm
Internal thread Unit
piece
Price
Euro*
Buy
15551
25 6,4 NPT 1/8" 2 144.00
