Product specification

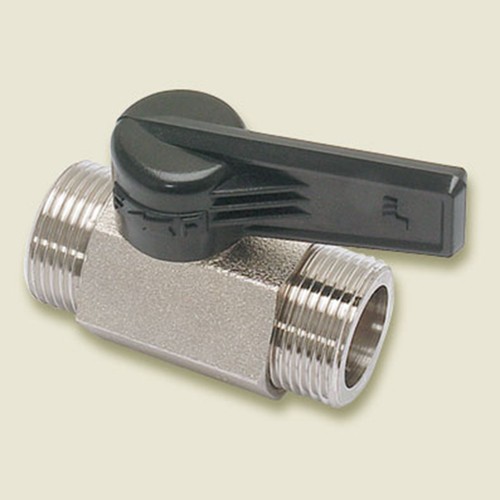

Spigot on both sides, R-cylinder pipe thread; with control knob
General Information
Shut-offs in temperature-loaded pressure line systems for neutral media.
Compactly constructed, easily operable ball cock system with low weight and small dimensions.
Material:
Cock plug: brass, polished
Housing: brass, compression moulded and nickel-plated
Ball seal: PTFE (Polytetrafluoroethylene)
Stem seal: FPM (fluorinated rubber)
Control handle: polyamide, black
Max. operating pressure: 15 bar bei +20 °C
Stop: 90°
Flow direction: arbitrary
Temperature range: -20 °C to +100 °C
Weight: <140 g

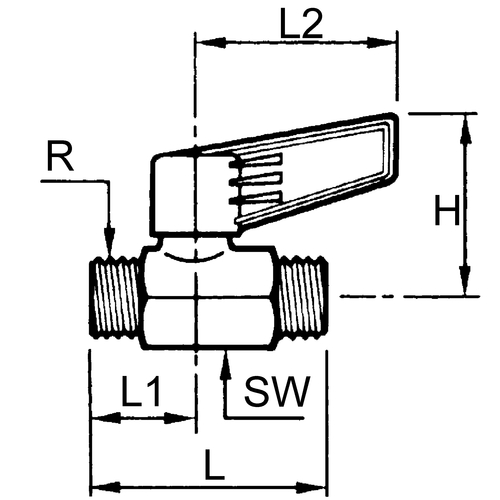

| Item | Image | External thread |
NW mm
|
H mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
External thread
|
NW mm
|
H mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46444 |
|
R 3/8" | 7 | 38 | 44 | 22 | 43 | 21 | 1 | 68.00 | |
| 46445 |
|
R 1/2" | 10 | 44 | 53 | 22 | 50 | 21 | 1 | 79.00 | |
| 46446 |
|
R 3/4" | 13 | 46 | 59 | 26 | 50 | 25 | 1 | 100.00 |
