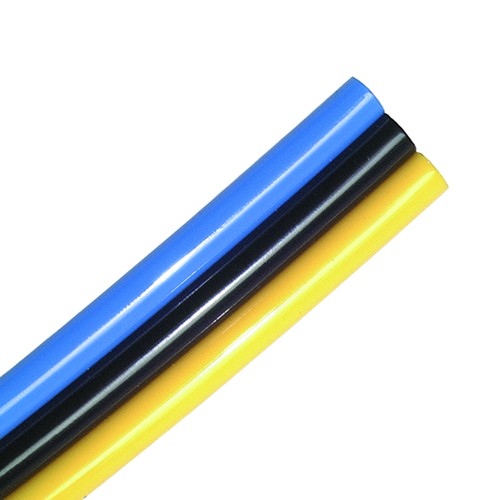

PA Lumen Chemical Tubing - triple-lumen
Product specification Best temperature resistance Very good mechanical stability Remarkable... more
Product specification
Best temperature resistance
Very good mechanical stability
Remarkable abrasion resistance
Good impact toughness
Low moisture absorption due to extremely low density
High dimensional stability of tubing
Technical specification
Material: PA 12 soft (polyamide 12 soft)
Colour: blue / black / natural
Temperature range: -50 to +120 °C, for a short time +150 °C
Sterilization: steam (+136 °C); gas (ethylene oxide); gamma-rays
Density: 1.02 g/cm3
Permeability to gas: low permeability
Physiological assessment: safe
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
302789 |
|
2 | 4 | 34 | 25 | 5 | 140.00 | |
302790 |
|
2 | 4 | 34 | 25 | 15 | 336.00 | |
302791 |
|
4 | 6 | 22 | 35 | 5 | 155.00 | |
302792 |
|
4 | 6 | 22 | 35 | 15 | 364.00 | |
302793 |
|
6 | 8 | 18 | 55 | 5 | 176.00 | |
302794 |
|
6 | 8 | 18 | 55 | 15 | 401.00 | |
302795 |
|
8 | 10 | 14 | 90 | 5 | 212.00 | |
302796 |
|
8 | 10 | 14 | 90 | 15 | 486.00 |
