Product specification

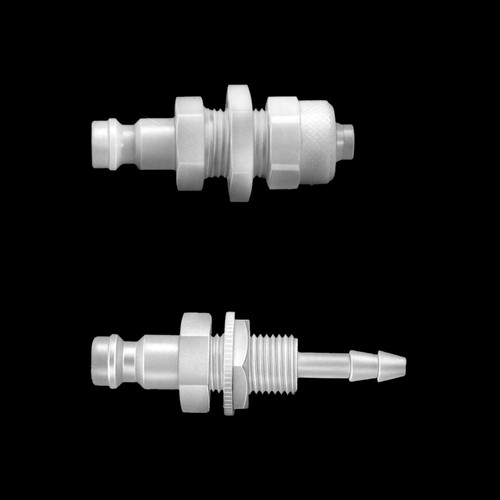

Male coupling part. With port or shut-off and hose nozzle or pipe screwed fitting for control panel mounting. Can be combined with all female coupling parts of nominal width 5.0 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

Close menu

General Information Quick-Disconnect Coupling

THOMAFLUID^®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID^®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PVDF

PVDF is a chemically inert, biocompatible fluorocarbone material with excellent temperature resistance. It is resistant to alcohols, aldehydes, petrol, benzene and other aromatic hydrocarbons, chlorine gas, esters, glycols and motor oils, salt solutions, alkalis and acids.

General Information 5 mm nominal width

Temperature and pressure loadable plug-in coupling parts for lower flow rates, biocompatible, made of impact-resistant polymer material.

Material:

Valve body: PVDF, white (polyvinylidene fluoride)

Gaskets: FPM (fluorinated rubber)

Valve spring: stainless steel 1.4571

Colour: white

Nominal width: 5 mm

Plug diameter: approx. 8.5 mm

Temperature range: -20 to +120 °C

Max. operating pressure: 8 bar at +20 °C

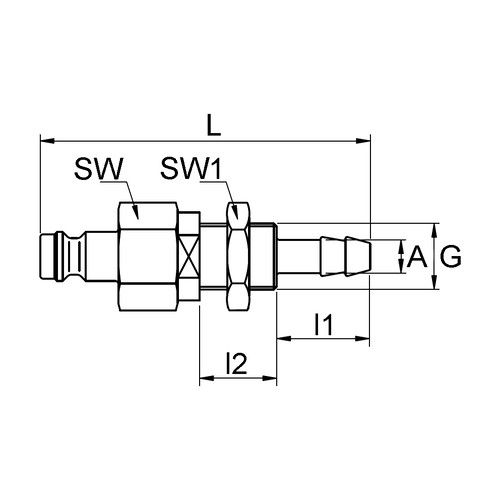

Item	Image	Connection	Ventil	Länge mm	l1 mm	l2 mm	Schott-Ø mm	SW mm	SW1 mm	Einheit Stück	Price Euro*

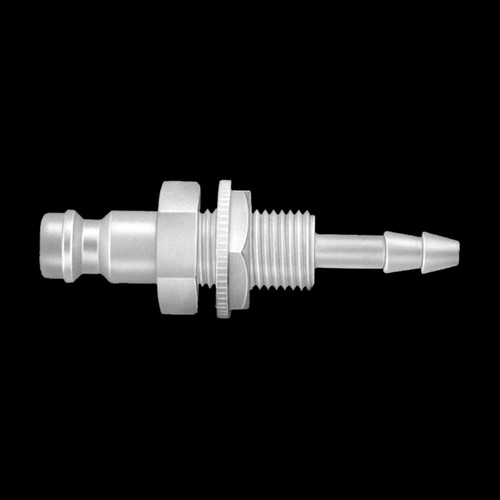

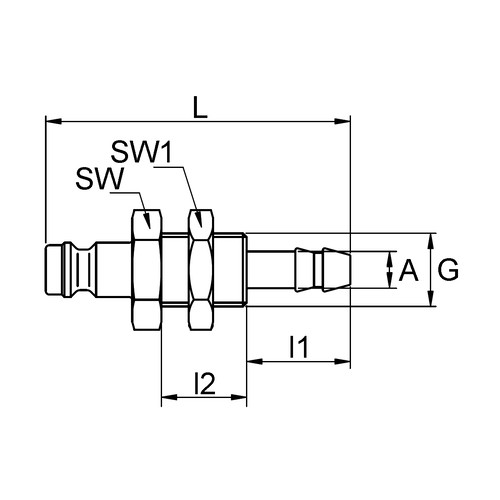

15885	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Tülle 4 mm	ohne	50	17	14	10	14	14	2	48.00
15886	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Tülle 6 mm	ohne	50	17	14	12	14	17	2	48.00
15889	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Rohr 6 mm	ohne	44	7	18	10	14	14	2	72.00

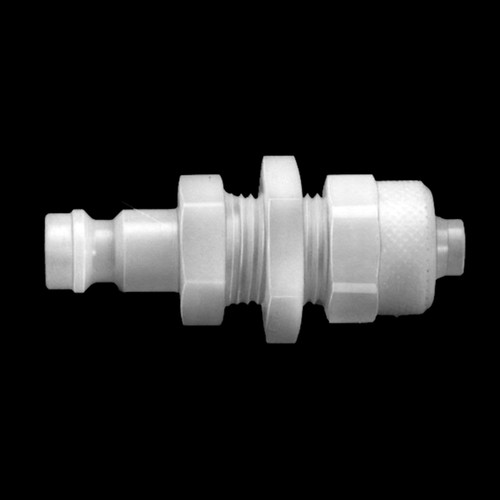

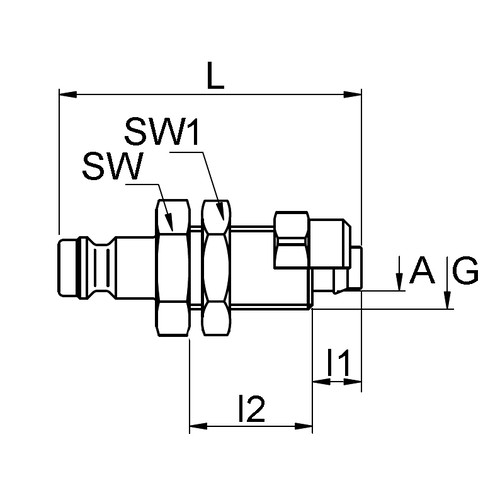

15890	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Rohr 8 mm	ohne	44	7	18	12	14	14	2	72.00

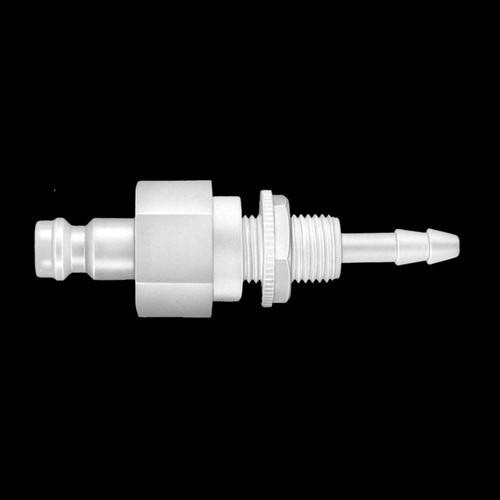

15909	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Tülle 4 mm	mit	60	7	14	10	17	14	1	84.00
15910	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Tülle 6 mm	mit	60	7	14	12	17	17	1	84.00

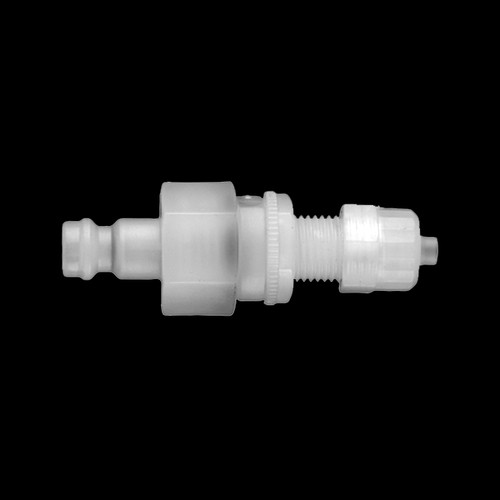

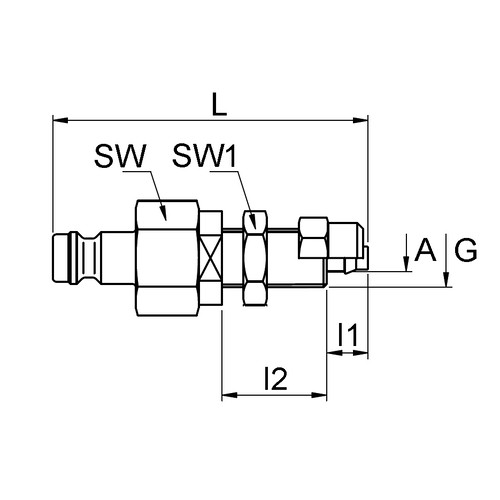

15913	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Rohr 6 mm	mit	54	7	18	10	17	14	1	86.00
15914	PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel PVDF Quick-Disconnect Nipple, NW 5.0 mm - Control Panel	Rohr 8 mm	mit	54	7	18	12	17	17	1	86.00
