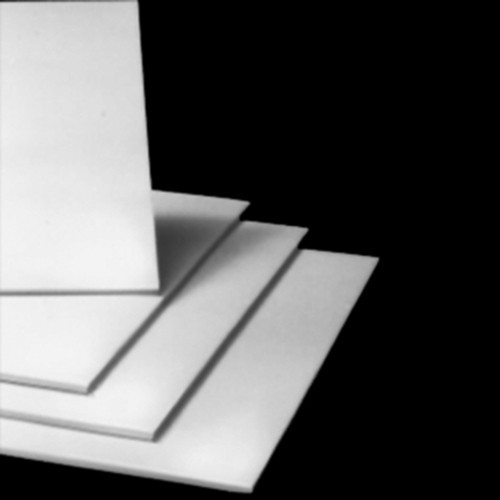

Plate made of PVC-U - light-grey

Plate made of PVC-U - light-grey
Product specification High stiffness and dimensional stability High mechanical stability... more

Product specification

High stiffness and dimensional stability

High mechanical stability

Best impact strength

Very good dielectrical properties

Flame-resistant

Good resistance to aging and weather

Not usable for slid functions

Risk of breakage at low temperatures

For weldments in laboratory and container building as well as for static parts in machine construction and in electrical engineering

Good chemical resistance, especially to petrol and oils

Technical specification

Material: PVC-U (rigid polyvinyl chloride)

Colour: light-grey

Temperature range: -15 to +60 °C, for a short time +70 °C

Density: 1.39 g/cm3

Tensile impact toughness: >320 MJ/mm2

Tensile strength: >50 N/mm2

Tolerance: DIN ISO 3302-1 E2

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
19980
0,2 500 x 500 1 43.00
19981
0,4 500 x 500 1 48.00
19982
1 500 x 500 1 51.00
19983
1,5 500 x 500 1 55.00
19984
2 500 x 500 1 58.00
19985
2,5 500 x 500 1 62.00
19986
3 500 x 500 1 65.00
19987
4 500 x 500 1 69.00
19988
5 500 x 500 1 76.00
19989
0,2 1000 x 1000 1 66.00
19990
0,4 1000 x 1000 1 74.00
19991
1 1000 x 1000 1 80.00
19992
1,5 1000 x 1000 1 88.00
19993
2 1000 x 1000 1 95.00
19994
2,5 1000 x 1000 1 104.00
19995
3 1000 x 1000 1 109.00
19996
4 1000 x 1000 1 117.00
19997
5 1000 x 1000 1 131.00
