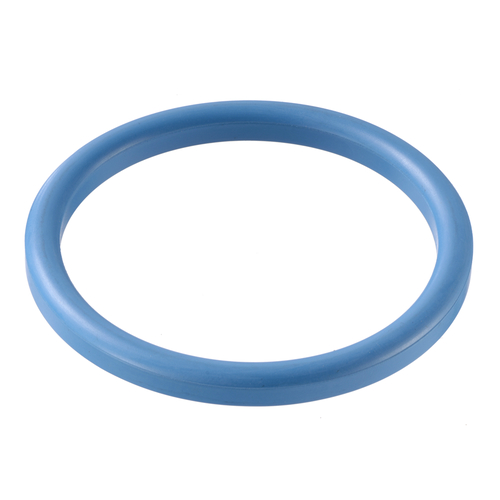

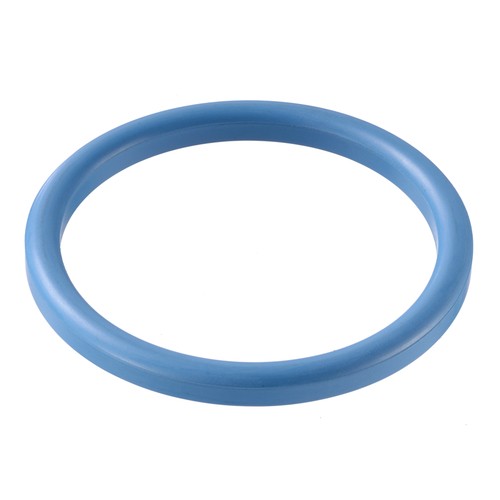

NBR Sealing Rings for Dairy Couplings
Application area Well suited for use in: Mineral oils, fats and waxes. Should not be used... more
Application area
Well suited for use in:
Mineral oils, fats and waxes.
Should not be used in:
Concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid), aromatic and chlorinated hydrocarbons.
Product specification
Food quality
Technical specification
Material: NBR (butadiene-acrylonitrile rubber)
Color: blue
Shore hardness A: 80° ±5° (test plate) (DIN 53505)
Temperature range: -30 to +100 °C
Density: 1.33 g/cm3 (DIN EN ISO 1183)
Tensile modulus at 100 % elongation: 3.9 N/mm2 (DIN 53504)
Tensile strength: 17.9 N/mm2 (DIN 53504)
Elongation at break: 346 % (DIN 53504)
Compression set: 30 % at +100 °C / 22 h (ASTM D395)
Regulations: For the food processing industry: conforming to FDA
Item | Image |
NW mm
|
Inside Ø mm
|
Außen-Ø mm
|
Höhe mm
|
Ausführung |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
410536 |
|
10 | 12 | 20 | 4,5 | Standard | 20 | 18.00 | |
410537 |
|
10 | 12 | 20 | 4,5 | Standard | 40 | 30.00 | |
410538 |
|
15 | 18 | 26 | 4,5 | Standard | 20 | 18.00 | |
410539 |
|
15 | 18 | 26 | 4,5 | Standard | 40 | 30.00 | |
410540 |
|
20 | 23 | 33 | 4,5 | Standard | 20 | 22.00 | |
410541 |
|
20 | 23 | 33 | 4,5 | Standard | 40 | 37.00 | |
410542 |
|
25 | 30 | 40 | 5 | Standard | 20 | 24.00 | |
410543 |
|
25 | 30 | 40 | 5 | Standard | 40 | 43.00 | |
410544 |
|
32 | 36 | 46 | 5 | Standard | 20 | 24.00 | |
410545 |
|
32 | 36 | 46 | 5 | Standard | 40 | 43.00 | |
410546 |
|
40 | 42 | 52 | 5 | Standard | 20 | 26.00 | |
410547 |
|
40 | 42 | 52 | 5 | Standard | 40 | 45.00 | |
410548 |
|
50 | 54 | 64 | 5 | Standard | 20 | 26.00 | |
410549 |
|
50 | 54 | 64 | 5 | Standard | 40 | 45.00 | |
410550 |
|
65 | 71 | 81 | 5 | Standard | 20 | 39.00 | |
410551 |
|
65 | 71 | 81 | 5 | Standard | 40 | 67.00 | |
410552 |
|
75 | 78 | 88 | 5 | Standard | 10 | 41.00 | |
410553 |
|
75 | 78 | 88 | 5 | Standard | 20 | 69.00 | |
410554 |
|
80 | 85 | 95 | 5 | Standard | 10 | 24.00 | |
410555 |
|
80 | 85 | 95 | 5 | Standard | 20 | 41.00 | |
410556 |
|
100 | 104 | 114 | 6 | Standard | 10 | 43.00 | |
410557 |
|
100 | 104 | 114 | 6 | Standard | 20 | 75.00 | |
410558 |
|
125 | 130 | 142 | 7 | Standard | 10 | 45.00 | |
410559 |
|
125 | 130 | 142 | 7 | Standard | 20 | 78.00 | |
410560 |
|
150 | 155 | 167 | 7 | Standard | 10 | 54.00 | |
410561 |
|
150 | 155 | 167 | 7 | Standard | 20 | 90.00 | |
410562 |
|
25 | 30 | 40 | 8 | hoch | 10 | 37.00 | |
410563 |
|
25 | 30 | 40 | 8 | hoch | 20 | 63.00 | |
410564 |
|
32 | 36 | 46 | 8 | hoch | 10 | 39.00 | |
410565 |
|
32 | 36 | 46 | 8 | hoch | 20 | 67.00 | |
410566 |
|
40 | 42 | 52 | 8 | hoch | 10 | 43.00 | |
410567 |
|
40 | 42 | 52 | 8 | hoch | 20 | 71.00 | |
410568 |
|
50 | 54 | 64 | 8 | hoch | 10 | 43.00 | |
410569 |
|
50 | 54 | 64 | 8 | hoch | 20 | 71.00 | |
410570 |
|
65 | 71 | 81 | 6,5 | hoch | 10 | 37.00 | |
410571 |
|
65 | 71 | 81 | 6,5 | hoch | 20 | 63.00 | |
410572 |
|
65 | 71 | 81 | 8 | hoch | 10 | 54.00 | |
410573 |
|
65 | 71 | 81 | 8 | hoch | 20 | 90.00 | |
410574 |
|
75 | 78 | 88 | 8 | hoch | 5 | 52.00 | |
410575 |
|
75 | 78 | 88 | 8 | hoch | 10 | 88.00 | |
410576 |
|
80 | 85 | 95 | 6,5 | hoch | 10 | 41.00 | |
410577 |
|
80 | 85 | 95 | 6,5 | hoch | 20 | 69.00 | |
410578 |
|
80 | 85 | 95 | 8 | hoch | 10 | 60.00 | |
410579 |
|
80 | 85 | 95 | 8 | hoch | 20 | 103.00 | |
410580 |
|
100 | 104 | 114 | 8 | hoch | 10 | 65.00 | |
410581 |
|
100 | 104 | 114 | 8 | hoch | 20 | 110.00 | |
410582 |
|
10 | 10,5 | 20 | 5 | mit Bund | 20 | 43.00 | |
410583 |
|
10 | 10,5 | 20 | 5 | mit Bund | 40 | 73.00 | |
410584 |
|
15 | 16,5 | 26 | 5 | mit Bund | 20 | 45.00 | |
410585 |
|
15 | 16,5 | 26 | 5 | mit Bund | 40 | 78.00 | |
410586 |
|
20 | 20,5 | 33 | 5 | mit Bund | 20 | 48.00 | |
410587 |
|
20 | 20,5 | 33 | 5 | mit Bund | 40 | 84.00 | |
410588 |
|
25 | 26,5 | 40 | 6 | mit Bund | 20 | 50.00 | |
410589 |
|
25 | 26,5 | 40 | 6 | mit Bund | 40 | 86.00 | |
410590 |
|
32 | 32,5 | 46 | 6 | mit Bund | 20 | 56.00 | |
410591 |
|
32 | 32,5 | 46 | 6 | mit Bund | 40 | 99.00 | |
410592 |
|
40 | 38,5 | 52 | 6 | mit Bund | 10 | 35.00 | |
410593 |
|
40 | 38,5 | 52 | 6 | mit Bund | 20 | 60.00 | |
410594 |
|
50 | 50,5 | 64 | 6 | mit Bund | 10 | 37.00 | |
410595 |
|
50 | 50,5 | 64 | 6 | mit Bund | 20 | 63.00 | |
410596 |
|
65 | 66,5 | 81 | 6 | mit Bund | 10 | 50.00 | |
410597 |
|
65 | 66,5 | 81 | 6 | mit Bund | 20 | 84.00 | |
410598 |
|
80 | 81,5 | 95 | 6 | mit Bund | 10 | 56.00 | |
410599 |
|
80 | 81,5 | 95 | 6 | mit Bund | 20 | 97.00 | |
410600 |
|
100 | 100,5 | 114 | 6 | mit Bund | 10 | 73.00 | |
410601 |
|
100 | 100,5 | 114 | 6 | mit Bund | 20 | 125.00 | |
410602 |
|
125 | 125 | 142 | 7 | mit Bund | 5 | 69.00 | |
410603 |
|
125 | 125 | 142 | 7 | mit Bund | 10 | 120.00 | |
410604 |
|
150 | 150 | 167 | 7 | mit Bund | 5 | 75.00 | |
410605 |
|
150 | 150 | 167 | 7 | mit Bund | 10 | 131.00 |
