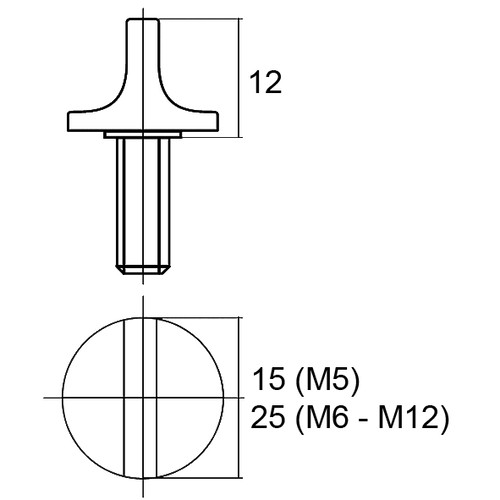

Wing Screw made of PA - simple wings

Previous
Wing Screw made of PA - simple wings



Technical specification

Material: PA 6.6 (polyamide 66)

Colour: white



General Information

Good coefficient of sliding friction

High mechanical stability and fatigue strength

Excellent resilience

Impact resistant

Resistant to abrasion

Resistant to cold

Chemical features:

Good resistance to weak alkalis, but only moderate resistance to strong alkalis; resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alcohols, esters, ketones, ethers and amines.

Material specification:

The polyamides are universal materials for mechanical functional parts

The temperature resistance of polyamide (from -30 to +100 °C, for a short time +120 °C) allows use in many industries

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Insulating properties and an amazingly high tensile strength

PA can also be used in the food processing industry and in medical fields

Resistant to corrosion and abrasion

Non-toxic and unmagnetic

Vibration-damping

PA 6.6 features the same chemical resistance as PA 6

PA 6.6 has a higher hardness, abrasion resistance, and a little higher operating temperature than PA 6

However, PA 6.6 is a little less impact resistant compared to PA 6

Material: PA 6.6 (polyamide 6.6)

Colour: natural

Density: 1.14 g/cm3 (DIN 53479)

Temperature range: -30 to +100 °C

Melting temperature: +255 °C (DIN 53736)

Yield stress: 83 N/mm2 (ISO 527)

Elongation at break: 30 % (DIN 53455)

Bending strength: 115 N/mm2 (DIN 53452)

Elastic modulus: 3,000 N/mm2 (DIN 53457)

Impact resistance (Charpy): without break (DIN 53453)

Notch impact strength (Izod): 60 J/m (ASTM D 256)

Coefficient of sliding friction against steel (dry): 0.35 - 0.42

Dielectric loss factor (at 1 MHz): 0.025 (DIN 53483)

Volume resistivity: 1015 Ohm x cm (DIN 53482)

Surface resistance: approx. 1014 Ohm (DIN 53482)

Comparative tracking index (CTI): >600 V (IEC 112)

Dielectric strength: approx. 40 kV/mm (DIN 53481)

Water absorption (saturation): approx. 8.5 % (DIN 53495)

Moisture absorption (s.c.a.-saturation): approx. 2.9 % (DIN 53714)

Position Item External thread Thread length
mm
Unit
piece
Price
Euro
Buy
1 306286 M5 x 0.8 6 50 55.00 Warenkorb
2 306287 M5 x 0.8 6 100 94.00 Warenkorb
3 306292 M5 x 0.8 10 50 55.00 Warenkorb
4 306293 M5 x 0.8 10 100 94.00 Warenkorb
5 306294 M5 x 0.8 12 50 55.00 Warenkorb
6 306295 M5 x 0.8 12 100 94.00 Warenkorb
7 306296 M5 x 0.8 15 50 55.00 Warenkorb
8 306297 M5 x 0.8 15 100 94.00 Warenkorb
9 306298 M5 x 0.8 20 50 55.00 Warenkorb
10 306299 M5 x 0.8 20 100 94.00 Warenkorb
11 305656 M6 x 1 6 50 30.00 Warenkorb
12 305657 M6 x 1 6 100 51.00 Warenkorb
13 305658 M6 x 1 8 50 30.00 Warenkorb
14 305659 M6 x 1 8 100 51.00 Warenkorb
15 306300 M6 x 1 10 50 30.00 Warenkorb
16 306301 M6 x 1 10 100 51.00 Warenkorb
17 306302 M6 x 1 12 50 30.00 Warenkorb
18 306303 M6 x 1 12 100 51.00 Warenkorb
19 306306 M6 x 1 20 50 30.00 Warenkorb
20 306307 M6 x 1 20 100 51.00 Warenkorb
21 306272 M6 x 1 25 50 36.00 Warenkorb
22 306273 M6 x 1 25 100 62.00 Warenkorb
23 306274 M6 x 1 30 50 36.00 Warenkorb
24 306275 M6 x 1 30 100 62.00 Warenkorb
25 306278 M6 x 1 40 50 36.00 Warenkorb
26 306279 M6 x 1 40 100 62.00 Warenkorb
27 306282 M6 x 1 50 50 41.00 Warenkorb
28 306283 M6 x 1 50 100 70.00 Warenkorb
29 306284 M6 x 1 60 50 41.00 Warenkorb
30 306285 M6 x 1 60 100 70.00 Warenkorb
31 333495 M6 x 1 80 50 55.00 Warenkorb
32 333496 M6 x 1 80 100 93.00 Warenkorb
33 333499 M8 x 1.25 8 50 46.00 Warenkorb
34 333500 M8 x 1.25 8 100 78.00 Warenkorb
35 333501 M8 x 1.25 10 50 46.00 Warenkorb
36 333502 M8 x 1.25 10 100 78.00 Warenkorb
37 333503 M8 x 1.25 12 50 46.00 Warenkorb
38 333504 M8 x 1.25 12 100 78.00 Warenkorb
39 333505 M8 x 1.25 16 50 46.00 Warenkorb
40 333506 M8 x 1.25 16 100 78.00 Warenkorb
41 333507 M8 x 1.25 20 50 56.00 Warenkorb
42 333508 M8 x 1.25 20 100 96.00 Warenkorb
43 333509 M8 x 1.25 25 50 56.00 Warenkorb
44 333510 M8 x 1.25 25 100 96.00 Warenkorb
45 333511 M8 x 1.25 30 50 56.00 Warenkorb
46 333512 M8 x 1.25 30 100 96.00 Warenkorb
47 333513 M8 x 1.25 35 25 33.00 Warenkorb
48 333514 M8 x 1.25 35 50 56.00 Warenkorb
49 333515 M8 x 1.25 40 25 33.00 Warenkorb
50 333516 M8 x 1.25 40 50 56.00 Warenkorb
51 333519 M8 x 1.25 50 25 38.00 Warenkorb
52 333520 M8 x 1.25 50 50 65.00 Warenkorb
53 333521 M8 x 1.25 60 25 38.00 Warenkorb
54 333522 M8 x 1.25 60 50 65.00 Warenkorb
55 333523 M8 x 1.25 70 25 49.00 Warenkorb
56 333524 M8 x 1.25 70 50 83.00 Warenkorb
57 333525 M8 x 1.25 80 25 49.00 Warenkorb
58 333526 M8 x 1.25 80 50 83.00 Warenkorb
59 333529 M10 x 1.5 8 25 34.00 Warenkorb
60 333530 M10 x 1.5 8 50 58.00 Warenkorb
61 333531 M10 x 1.5 10 25 34.00 Warenkorb
62 333532 M10 x 1.5 10 50 58.00 Warenkorb
63 333533 M10 x 1.5 12 25 34.00 Warenkorb
64 333534 M10 x 1.5 12 50 58.00 Warenkorb
65 333535 M10 x 1.5 16 25 34.00 Warenkorb
66 333536 M10 x 1.5 16 50 58.00 Warenkorb
67 333537 M10 x 1.5 20 25 38.00 Warenkorb
68 333538 M10 x 1.5 20 50 66.00 Warenkorb
69 333541 M10 x 1.5 30 25 43.00 Warenkorb
70 333542 M10 x 1.5 30 50 73.00 Warenkorb
71 333545 M10 x 1.5 40 25 43.00 Warenkorb
72 333546 M10 x 1.5 40 50 73.00 Warenkorb
73 333549 M10 x 1.5 50 25 48.00 Warenkorb
74 333550 M10 x 1.5 50 50 82.00 Warenkorb
75 333551 M10 x 1.5 60 25 54.00 Warenkorb
76 333552 M10 x 1.5 60 50 90.00 Warenkorb
77 333553 M10 x 1.5 80 20 51.00 Warenkorb
78 333554 M10 x 1.5 80 40 84.00 Warenkorb
79 333561 M12 x 1.75 16 25 44.00 Warenkorb
80 333562 M12 x 1.75 16 50 75.00 Warenkorb
81 333563 M12 x 1.75 20 25 44.00 Warenkorb
82 333564 M12 x 1.75 20 50 75.00 Warenkorb
83 333567 M12 x 1.75 30 25 52.00 Warenkorb
84 333568 M12 x 1.75 30 50 88.00 Warenkorb
85 333571 M12 x 1.75 40 25 59.00 Warenkorb
86 333572 M12 x 1.75 40 50 98.00 Warenkorb
87 333575 M12 x 1.75 50 20 49.00 Warenkorb
88 333576 M12 x 1.75 50 40 81.00 Warenkorb
89 333577 M12 x 1.75 60 20 53.00 Warenkorb
90 333578 M12 x 1.75 60 40 90.00 Warenkorb
91 333579 M12 x 1.75 80 20 53.00 Warenkorb
92 333580 M12 x 1.75 80 40 90.00 Warenkorb
