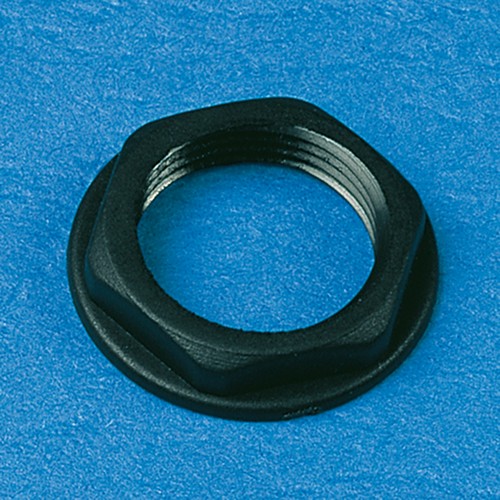

Hex Washer Faced Nut made of PA - glass fibre reinforced

Product specification Nut and washer in one piece Quick assembly Suitable for awkward... more

Product specification

Nut and washer in one piece

Quick assembly

Suitable for awkward locations or automated assembly

Technical specification

Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)

Colour: black

General Information Chemical features: Good resistance to mineral lubricants, aromatic and... more

General Information

Chemical features:

Good resistance to mineral lubricants, aromatic and aliphatic hydrocarbons, gasoline, trichloroethylene, perchloroethylene, acetone and alkohols

Material specification:

Dimensionally stable and impact resistant

Suitable for heavy-duty and power transmission applications

Glass fibre reinforced polyamides have excellent impact resistance combined with a high stiffness and strength

Extremely robust to mechanical load

UV light and weather: medium resistance

Material: PA 6.6 (polyamide 6.6), glass fibre reinforced (25 %)

Density: 1.36 g/cm³

Temperature range: -40 to +120 °C, for a short time +240 °C

Tensile strength: 170 / 120 MPa (dry / humid) (ISO 527)

Bending strength: 210 MPa (ISO 178)

Elongation at break: 4 % (ISO 527)

Elastic modulus: 7,000 MPa (ISO 527)

Impact resistance (Charpy): 75 kJ/m² (ISO 179/1eU)

Notch impact strength (Izod): 12 kJ/m² (ISO 180/1A)

Melting point: +260 °C (ISO 11357)

Water absorption: 1.9 %; 6.0 % during storage in water (ISO 62)

Dielectric strength: 85 kV/mm (IEC 60243-1)

Volume resistivity: 10¹² Ohm x m (IEC 60093)

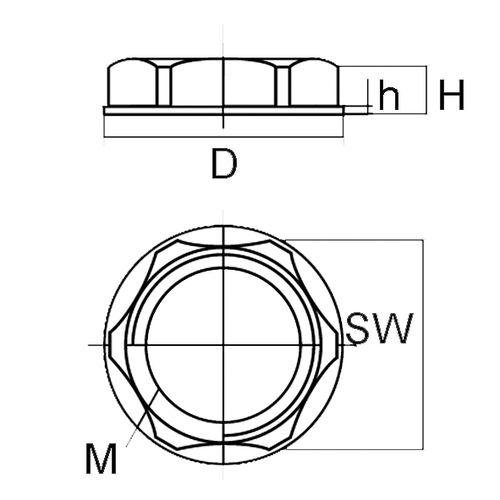

Item	Internal thread	D mm	h mm	H mm	SW mm	Einheit Stück	Price Euro*
305890	M12 x 1	18	1	4	15	25	45.00
305891	M12 x 1	18	1	4	15	50	76.00
305893	M14 x 1	20	1	4	17	25	45.00
305894	M14 x 1	20	1	4	17	50	76.00
305896	M15 x 1	20	1	4	17	25	45.00
305897	M15 x 1	20	1	4	17	50	76.00
305899	M18 x 1,5	25	1	6	22	25	45.00
305900	M18 x 1,5	25	1	6	22	50	76.00
305902	M27 x 1	34,5	1,5	6	30	25	45.00
305903	M27 x 1	34,5	1,5	6	30	50	76.00
