High-Tech 3/2-Way Solenoid Valve made of PTFE for High-Purity Media

Product specification 2 types: Type A: with plug socket Type B: with 1m moulded-in silicone... more

Product specification

2 types:

Type A: with plug socket

Type B: with 1m moulded-in silicone cable and integrated high-performance coil (at opening: 60 W; on holding: 3 W)

Media connection: internal thread G 3/8"

Fitted for 2 functions: 2 inlets and 1 outlet or 1 inlet and 2 outlets

General Information For opening, closing, dosing, venting, mixing and distributing. The... more

General Information

For opening, closing, dosing, venting, mixing and distributing.

The valve is particularly suitable for aggressive media and gases, aromatic compound, ether, ester and ketone, as well as for oxydizing acids and substances, oils, salt solutions, waste gases, technical vacuum and FFKM (perfluorinated elastomer).

High performance valve

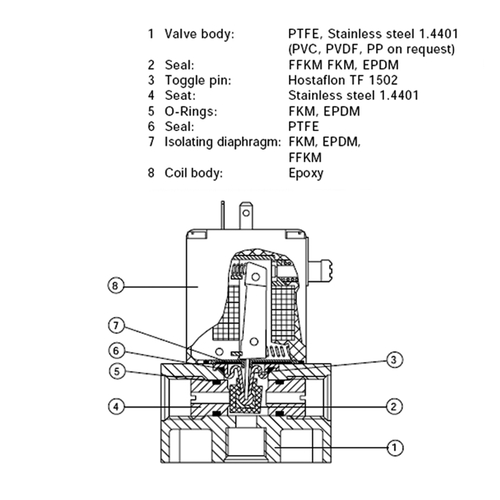

The separation between the magnetic system and the media chamber is represented by an intermediate separating diaphragm system.

Direct-acting by separating diaphragm

Pivoted armature valve with manual override

Material:

Housing: PTFE (polytetrafluoroethylene)

Gaskets: FPM (fluorinated rubber)

Viscosity: 37 mm2/sec

Max. temperature of medium: -10 to +90 °C (FPM; FFKM)

Max. ambient temperature: +50 °C

Mounting position: optional (coil preferably in upright position)

Function: normally closed (NC)

Protection category: IP 65 (with cable or plug socket)

Voltage tolerance: ±10 %

Item Image NW
mm
Max. flow rate liquids2
l/h
max. Betr.-Druck1
bar
Spannung
Volt
Werkstoff Dichtung Typ Einheit
Stück
Price
Euro*
Buy
339831
4 300 2 24= FPM A 1 1,310.00
339832
4 300 2 24= FFKM A 1 1,310.00
339749
4 300 2 24= FPM B 1 1,347.00
339750
4 300 2 24= FFKM B 1 1,347.00
339751
4 300 2 230~ FPM A 1 1,310.00
339752
4 300 2 230~ FFKM A 1 1,310.00
339833
4 300 2 230~ FPM B 1 1,347.00
339834
4 300 2 230~ FFKM B 1 1,347.00
339793
6 600 1 24= FPM A 1 1,310.00
339794
6 600 1 24= FFKM A 1 1,310.00
339797
6 600 1 230~ FPM A 1 1,310.00
339798
6 600 1 230~ FFKM A 1 1,310.00
339835
6 600 1 24= FPM B 1 1,347.00
339836
6 600 1 24= FFKM B 1 1,347.00
339837
6 600 1 230~ FPM B 1 1,347.00
339838
6 600 1 230~ FFKM B 1 1,347.00
