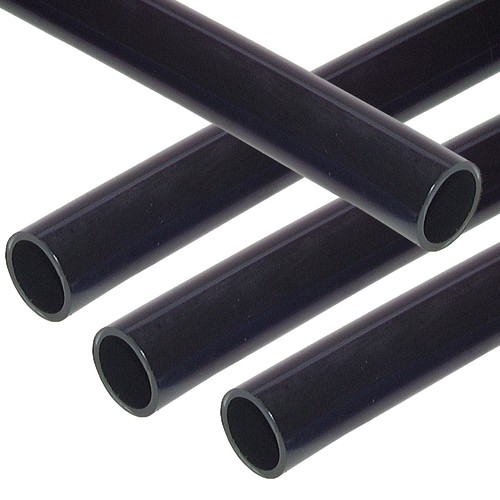

PA Chemical Tubing - electrically conductive and tolerated outside

Application area Vacuum lines in explosion-proof rooms Pressure lines in explosion-proof... more

Application area

Vacuum lines in explosion-proof rooms

Pressure lines in explosion-proof rooms

Product specification

Electrically conductive - graphite-filled

Good mechanical stability

Resistance to abrasion

Remarkable pressure resistance and impact resistance

High temperature resistance

Very good UV-resistance

Best resistance to aging

Highest water insensitivity (no absorption)

Calibrated, thus suitable for plug-in connectors

Highest dimensional stability

Good chemical resistance, especially to oils, fats, fuels, lacquer solvents and hydraulic liquids

Technical specification

Material: PA 12 soft (polyamide 12, soft)

Colour: black

Temperature range: 40 to +90 °C

Density: 1.04 g/cm³ (ISO 1183)

Yield stress: 20 MPa (ISO 527)

Breaking stress: 35 MPa (ISO 527)

Tensile modulus: 350 MPa (ISO 527)

Impact resistance (Charpy):

at +23 °C: without break kJ/m² (ISO 179/2-1eU)

at -30 °C: without break kJ/m² (ISO 179/2-1eU)

Volume resistivity: 1,000 Ω x m (IEC 60093)

Surface resistance: 10⁶ Ω (IEC 60093)

Tolerances outside Ø: 4-6 mm ±0.05 mm; 8-16 mm ±0.10 mm

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	min. Biegeradius mm	Einheit m	Price Euro*
330035	2	4	45	20	5	125.00
330036	2	4	45	20	15	311.00
330037	4	6	27	25	5	131.00
330038	4	6	27	25	15	324.00
330039	6	8	19	30	5	135.00
330040	6	8	19	30	15	334.00
330041	8	10	15	60	5	137.00
330042	8	10	15	60	15	343.00
330043	10	12	12	85	5	142.00
330044	10	12	12	85	15	354.00
