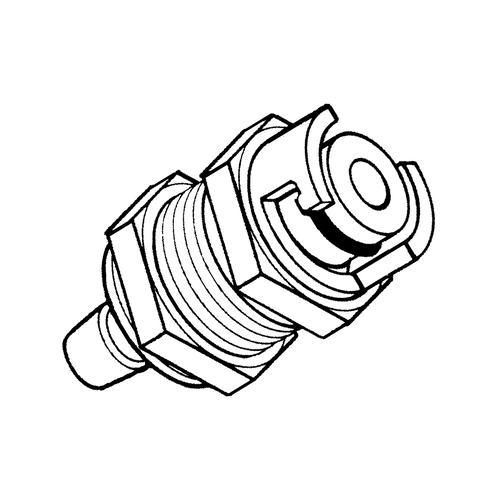

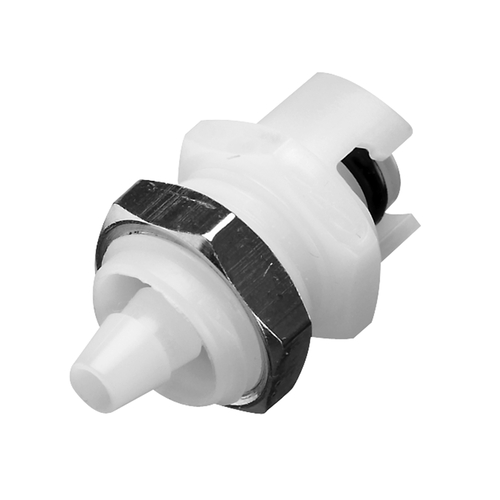

Male coupling part. With port and hose nozzle; external thread or pipe screwed fitting for control panel mounting. Can be combined with all female coupling parts of nominal width 1.6 mm.
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.
A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
General Information POM
For compressed air, gases, liquids, and vacuum, floor cleaning equipment, filtration of deionized water, dispensing equipment, automated machines, compression therapy, leak detectors.
The coupling parts (couplings and nipples) are made of thermoplastic acetal in the injection-moulding process. They are robust and usable with the most mild chemicals.
Resistant to alcohol, aldehydes, petrol, ethers, esters, glykols and motor oils, within the pH range of 4 to 9 also to alkalis and acids.
General Information 1.6 mm nominal width
The smallest series of quick-release couplings with bayonet locking is a reliable and safe alternative to Luer connections.
The connected hose can rotate freely. This prevents unintentional loosening of the connection as well as kinking and twisting of the hoses.
Protective collar of the thin and sensitive 1.6 mm hose nozzle.
Valve body: POM (polyacetal, polyoxymethylene)
Gaskets: NBR (butadiene-rubber)
Valve spring: stainless steel 316
Nominal width: 1.6 mm
Temperature range: -40 to +82 °C
Max. operating pressure: 6.9 bar at +20 °C
|Tülle 1,6 mm
|Tülle 3,2 mm
