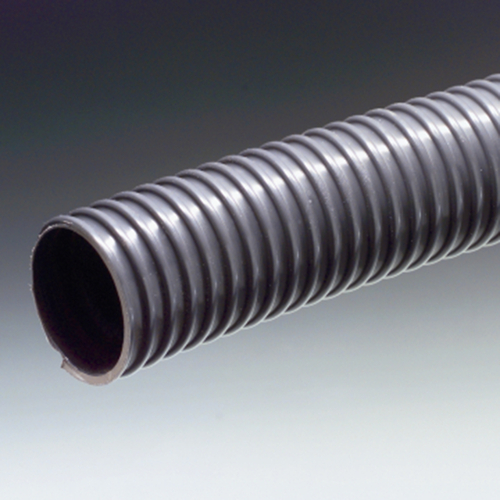

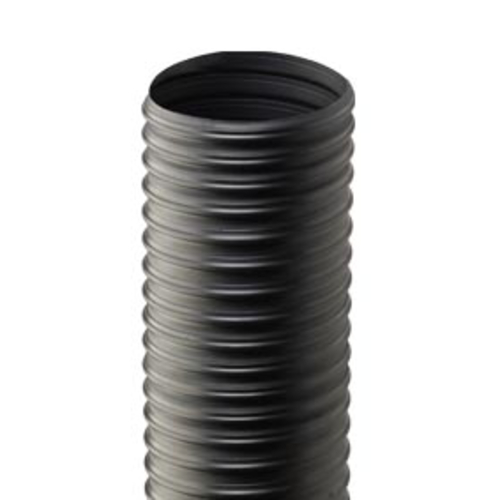

PVC Spiral Ventilation Tubing - light
| Item |
Inside Ø mm
|
Außen-Ø mm
|
Vakuum mbar
|
min. Biegeradius mm
|
Gewicht kg/m
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 12642 | 25 | 30 | 245 | 30 | 0,15 | 5 | 72.00 | |
| 12643 | 25 | 30 | 245 | 30 | 0,15 | 10 | 130.00 | |
| 12644 | 30 | 35,2 | 245 | 35 | 0,19 | 5 | 94.00 | |
| 12645 | 30 | 35,2 | 245 | 35 | 0,19 | 10 | 174.00 | |
| 12646 | 35 | 40,8 | 195 | 35 | 0,23 | 5 | 102.00 | |
| 12647 | 35 | 40,8 | 195 | 35 | 0,23 | 10 | 187.00 | |
| 12648 | 40 | 46 | 195 | 50 | 0,27 | 5 | 121.00 | |
| 12649 | 40 | 46 | 195 | 50 | 0,27 | 10 | 223.00 | |
| 12650 | 45 | 51,2 | 195 | 55 | 0,34 | 5 | 132.00 | |
| 12651 | 45 | 51,2 | 195 | 55 | 0,34 | 10 | 239.00 | |
| 12652 | 50 | 57 | 195 | 60 | 0,42 | 5 | 157.00 | |
| 12653 | 50 | 57 | 195 | 60 | 0,42 | 10 | 288.00 | |
| 12654 | 60 | 68,4 | 500 | 60 | 0,6 | 5 | 181.00 | |
| 12655 | 60 | 68,4 | 500 | 60 | 0,6 | 10 | 332.00 | |
| 12656 | 70 | 77,6 | 145 | 90 | 0,56 | 3 | 135.00 | |
| 12657 | 70 | 77,6 | 145 | 90 | 0,56 | 5 | 204.00 | |
| 12658 | 76,2 | 83,6 | 145 | 100 | 0,62 | 3 | 146.00 | |
| 12659 | 76,2 | 86,6 | 145 | 100 | 0,62 | 5 | 223.00 | |
| 12660 | 80 | 88,6 | 145 | 110 | 0,73 | 3 | 151.00 | |
| 12661 | 80 | 88,6 | 145 | 110 | 0,73 | 5 | 234.00 | |
| 12662 | 90 | 99 | 135 | 125 | 0,83 | 3 | 176.00 | |
| 12663 | 90 | 99 | 135 | 125 | 0,83 | 5 | 269.00 | |
| 12664 | 100 | 109,2 | 125 | 140 | 0,94 | 1 | 81.00 | |
| 12665 | 100 | 109,2 | 125 | 140 | 0,94 | 3 | 187.00 | |
| 12666 | 110 | 120 | 115 | 150 | 1,07 | 1 | 83.00 | |
| 12667 | 110 | 120 | 115 | 150 | 1,07 | 3 | 206.00 | |
| 12668 | 120 | 130 | 95 | 160 | 1,17 | 1 | 86.00 | |
| 12669 | 120 | 130 | 95 | 160 | 1,17 | 3 | 211.00 | |
| 12670 | 127 | 137 | 95 | 170 | 1,23 | 1 | 97.00 | |
| 12671 | 127 | 137 | 95 | 170 | 1,23 | 3 | 241.00 | |
| 12672 | 130 | 140 | 85 | 170 | 1,26 | 1 | 99.00 | |
| 12673 | 130 | 140 | 85 | 170 | 1,26 | 3 | 250.00 | |
| 12674 | 140 | 150,2 | 85 | 175 | 1,41 | 1 | 105.00 | |
| 12675 | 140 | 150,2 | 85 | 175 | 1,41 | 3 | 272.00 | |
| 12676 | 150 | 161,6 | 200 | 150 | 1,8 | 1 | 113.00 | |
| 12677 | 150 | 161,6 | 200 | 150 | 1,8 | 3 | 288.00 | |
| 12678 | 160 | 172 | 65 | 190 | 1,73 | 1 | 121.00 | |
| 12679 | 180 | 193 | 100 | 300 | 1,94 | 1 | 137.00 | |
| 12680 | 200 | 212 | 40 | 400 | 2,14 | 1 | 157.00 | |
| 12681 | 250 | 263,6 | 40 | 450 | 3,21 | 1 | 236.00 | |
