Application area
Food technology, drinking water supply, beverage industry, Industrial kitchens, emergency supply lines, camping and caravan equipment
Product specification

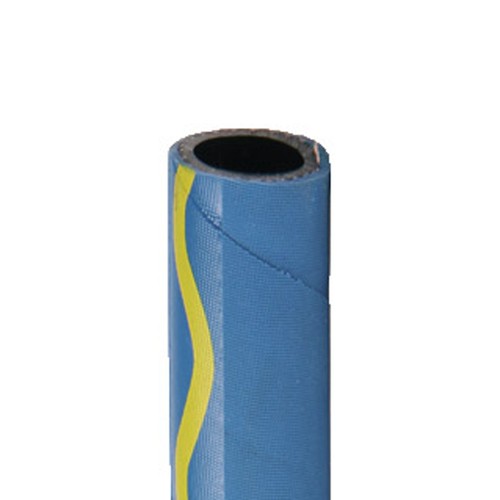

High flexible drinking and ultrapure water tubing for cold and warm water
Liner is physiologically safe, it does not contain any extractable constituents
Tasteless and odourless
Approval according to KTW and DVGW
Food quality
High abrasion resistance
Jacket is UV-, oil and grease resistant
Technical specification
Material:
Liner: Special transparent Plastomer
Jacket: NBR (butadiene-acrylonitrile rubber)
Colour:
Liner: transparent, mirror-smooth
Jacket: blue, fabric-pattern, smooth
Temperature range: -20 to +90 °C, steam strippable up to +130 °C
Insert: synthetic fabric
Max. operating pressure: 20 bar at +20 °C
Regulations: KTW Cat. A and DVGW-W270
Marking: KTW "A" UND DVGW-W270 GEPRÜFT
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 340088 |
|
13 | 20,2 | 20 | 1 | 95.00 | |
| 340089 |
|
13 | 20,2 | 20 | 3 | 221.00 | |
| 340090 |
|
19 | 27,4 | 20 | 1 | 99.00 | |
| 340091 |
|
19 | 27,4 | 20 | 3 | 249.00 | |
| 340092 |
|
25 | 34 | 20 | 1 | 105.00 | |
| 340093 |
|
25 | 34 | 20 | 3 | 277.00 | |
