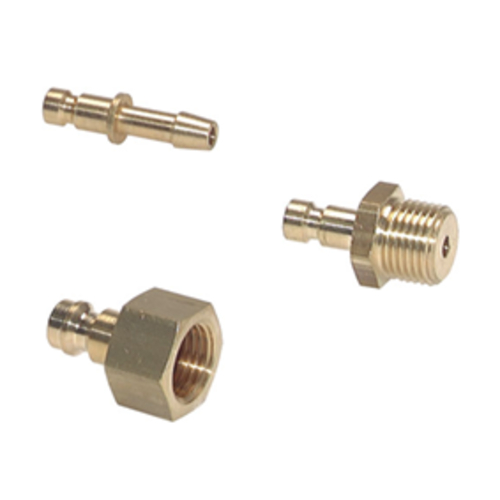

Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides

Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides

Product specification Male coupling part. With shut-off and hose nozzle; external or internal... more

Close menu

Product specification

Male coupling part. With shut-off and hose nozzle; external or internal thread for piping connection. Can be combined with all female coupling parts of nominal width 7.2 mm locking on both sides.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

Close menu

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Nickel-Plated Brass

THOMAFLUID^®quick-release couplings are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. One-hand operating of all quick-release couplings allows coupling or disconnecting even at places hard to get to. When pushing the nipple into the quick-release coupling the valve opens automatically and the medium flows to the point of usage. When disconnecting, the valve in the quick-release coupling shuts off automatically. A complete operable quick-release coupling consists of a coupling part and a nipple part. All coupling parts (female parts) are delivered with shut-off valve; all nipple parts (male parts) are delivered without valve.

The coupling systems are available in two designs:

Single shut-off: All coupling parts are available with valve for shut-off, all plug parts are delivered without valve.

Double shut-off: All coupling parts and all plug parts are available with valve for shut-off.

(Coupling elements of one type cannot be combined with elements of the other type)

Material:

Valve body: nickel-plated brass

Gasket: NBR (butadiene-acrylonitrile-rubber)

Springs, retaining rings: stainless steel 1.4034

Unlocking bush: nickel-plated brass

Valve: brass

Balls: stainless steel 1.4034

Colour: yellow-gold

Nominal width: 2.7; 5 and 7.2 mm

Temperature range: -20 to +100 °C

Max. operating pressure: 35 bar at +20 °C

Item	Image	Connection	Länge mm	Einheit Stück	Price Euro*
51208	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	Tülle 6 mm	48	1	46.00
51209	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	Tülle 8 mm	48	1	46.00

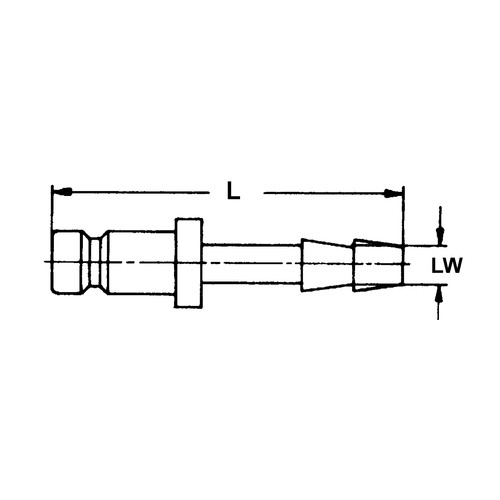

51210	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	Tülle 9 mm	48	1	46.00
51211	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	Tülle 10 mm	48	1	46.00

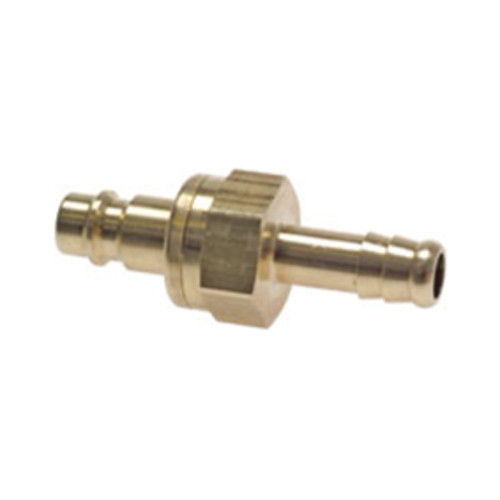

51212	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	Tülle 13 mm	48	1	50.00
51229	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	A-Gewinde G 1/8"	35	1	46.00
51230	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	A-Gewinde G 1/4"	37	1	46.00

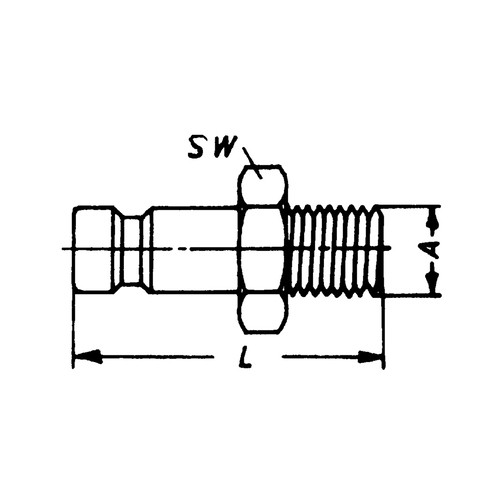

51231	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	A-Gewinde G 3/8"	37	1	46.00

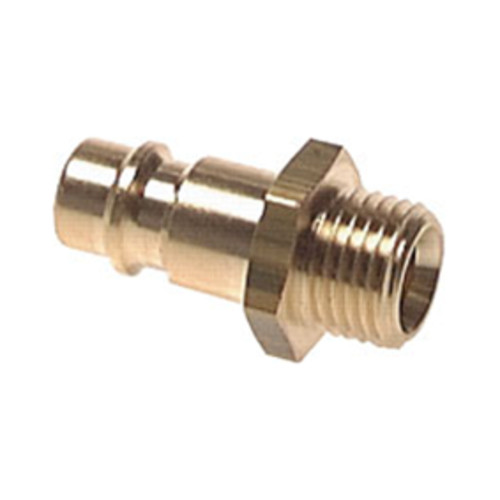

51232	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	A-Gewinde G 1/2"	41	1	50.00

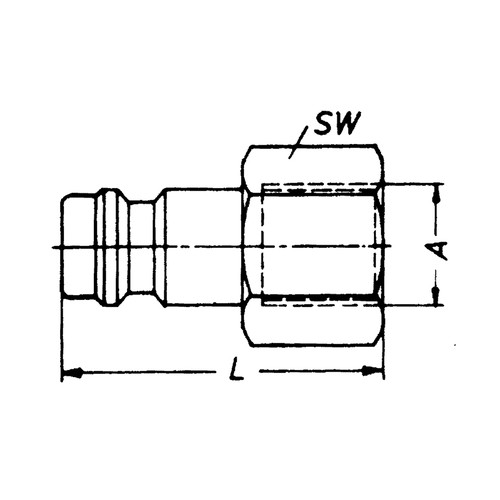

51249	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	I-Gewinde G 1/8"	32	1	50.00
51250	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	I-Gewinde G 1/4"	33	1	50.00
51251	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	I-Gewinde G 3/8"	33	1	50.00

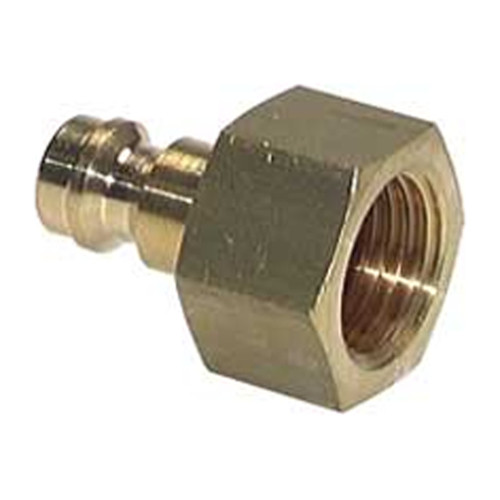

51252	Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides Quick-Disconnect Nipple made of Nickel-Plated Brass, NW 7.2 mm - shutting-off on both sides	I-Gewinde G 1/2"	36	1	54.00
