T-Nipple made of PP, PVDF or PFA

Product specification T-nipple with male G-thread on all ends more

Product specification

T-nipple with male G-thread on all ends

General Information Material: PP , grey (polypropylene) Temperature range: +5 to... more

General Information

Material: PP, grey (polypropylene)

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PVDF, white (polyvinylidene fluoride)

Temperature range: -40 to +140 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PFA, white (perfluoroalkoxy)

Temperature range: -150 to +180 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

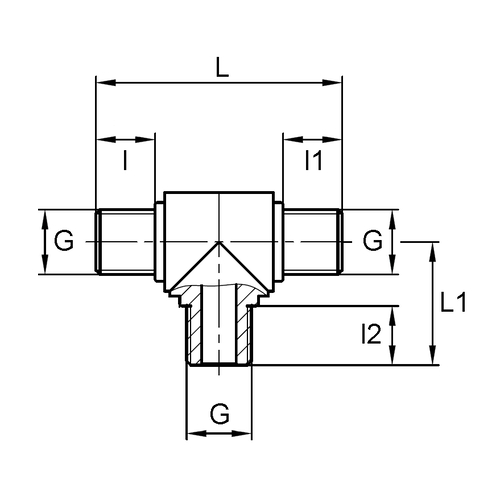

Item Image External thread l - l1 - l2
mm
L
mm
L1
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
24348
G 1/8" 8 40 20 PP 1 13.00
24349
G 1/8" 8 40 20 PFA 1 113.00
24350
G 1/8" 8 40 20 PVDF 1 67.00
24352
G 1/4" 12 54 25 PP 1 19.00
24353
G 1/4" 12 54 25 PFA 1 165.00
24354
G 1/4" 12 54 25 PVDF 1 93.00
24356
G 3/8" 12 54 27 PP 1 30.00
24357
G 3/8" 12 54 27 PFA 1 180.00
24358
G 3/8" 12 54 27 PVDF 1 106.00
24360
G 1/2" 14 65 35 PP 1 45.00
24361
G 1/2" 14 65 35 PFA 1 191.00
24362
G 1/2" 14 65 35 PVDF 1 125.00
