Product specification

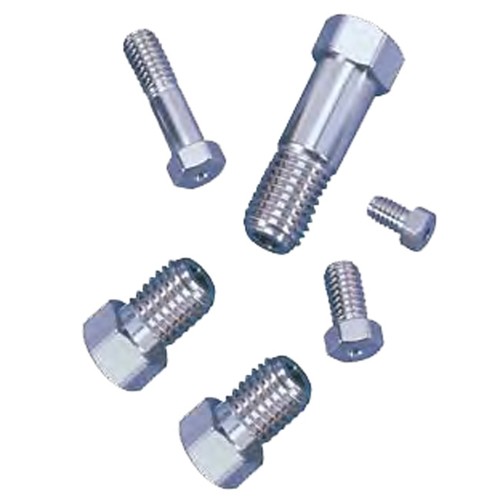

Male screws made of stainless steel for HPLC and other applications, for screwing of metal capillaries and pipes with all inch-dimensioned cap fittings, e.g. for systems of Altex/Beckmann, Parker, CPI, Swagelok etc.
| Item | Image |
Pipe outside Ø inch
| Außengewinde |
Länge mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Pipe outside Ø inch
|
Außengewinde
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 83506 |
|
1/32" | UNF 6-40 | 7,62 | 2 | 24.00 | |
| 83507 |
|
1/32" | UNF 6-40 | 11,43 | 2 | 24.00 | |
| 83508 |
|
1/16" | UNF 10-32 | 10,92 | 3 | 26.00 | |
| 83601 |
|
1/16" | UNF 10-32 | 19,05 | 2 | 23.00 | |
| 83510 |
|
1/8" | UNF 5/16"-28 | 14,48 | 3 | 26.00 | |
| 83602 |
|
1/8" | UNF 5/16"-28 | 27,18 | 2 | 23.00 | |
| 83600 |
|
1/4" | UNF 7/16"-20 | 17,78 | 3 | 26.00 | |
| 83603 |
|
1/4" | UNF 7/16"-20 | 28,19 | 1 | 32.00 |
