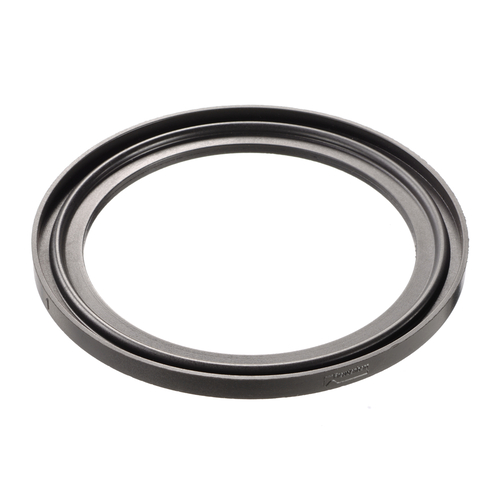

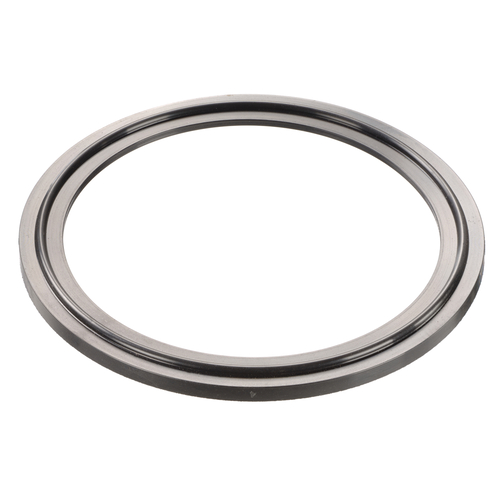

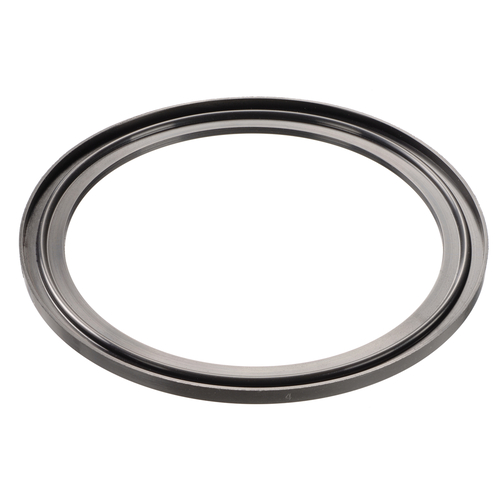

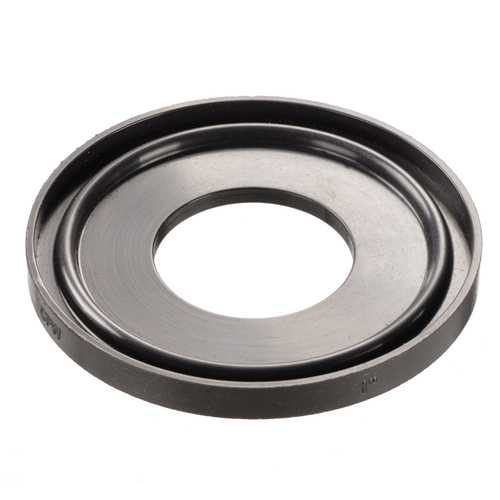

High-Performance NBR Clamp Seals - Standard: DIN 32676

High-Performance NBR Clamp Seals - Standard: DIN 32676

Close menu

No additional information available.

General Information Very good choice for applications involving mechanical load, as well as... more

Close menu

General Information

Very good choice for applications involving mechanical load, as well as in mineral oils, fats and waxes, motor oils and fuels

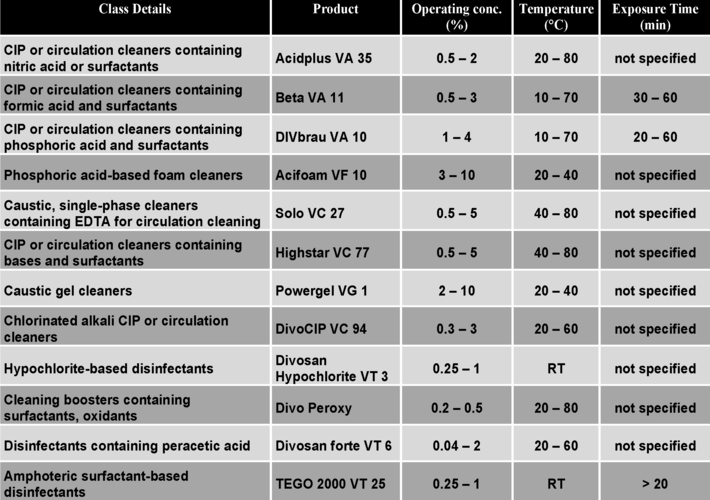

Well suited for use in CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. hypochlorite) and / or polar organic solvents (e.g. acetic acid)

Should not be used in concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid), aromatic and chlorinated hydrocarbons

Good abrasion resistance

Good thermal resistance

The level of ACN is tailored to the specific application, so that the optimal balance of chemical resistance and low-temperature flexibility is achieved

Good resistance to mineral oil and fuels, outstanding resistance to vegetable and animal oils, silicones, diluted acids and bases at room temperature

In aromatic and chlorinated hydrocarbons NBR is prone to swelling

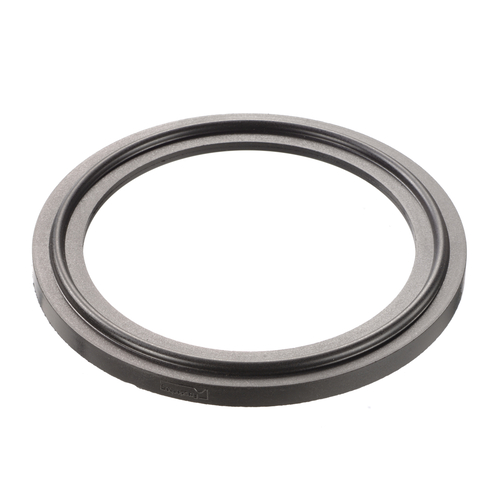

Material: NBR (butadiene-acrylonitrile-rubber)

Color: black

Crosslinking: peroxidic

Shore hardness A: 70° ±5° (test plate) (DIN 53505)

Density: 1.17 ±0.02 g/cm³ (DIN EN ISO 1183)

Rebound elasticity: 28 % (DIN 53512)

Modulus at 100 % elongation: 5.5 N/mm² (DIN 53504)

Tensile strength: 18.5 N/mm² (DIN 53504)

Elongation at break: 240 % (DIN 53504)

Tear propagation resistance: 10 N/mm² (DIN 53515)

Compression set: <20 % at +100 °C / 22 h / 25 %

Temperature range: -20 to +100 °C

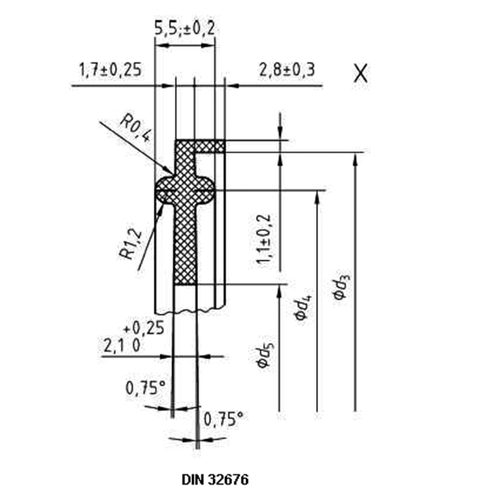

Item	For flange size mm	d mm	D mm	D1 mm	Einheit Stück	Price Euro*
410866	10	10,2	27,5	34	2	78.00
410867	10	10,2	27,5	34	6	193.00
410868	15	16,2	27,5	34	2	78.00
410869	15	16,2	27,5	34	6	193.00
410870	20	20,2	27,5	34	2	82.00
410871	20	20,2	27,5	34	6	200.00
410872	25	26,2	43,5	50,5	2	88.00
410873	25	26,2	43,5	50,5	6	219.00
410874	32	32,2	43,5	50,5	2	90.00
410875	32	32,2	43,5	50,5	6	225.00
410876	40	38,2	43,5	50,5	2	90.00
410877	40	38,2	43,5	50,5	6	225.00
410878	50	50,2	56,5	64	2	107.00
410879	50	50,2	56,5	64	6	270.00
410880	65	66,2	83,5	91	2	142.00
410881	65	66,2	83,5	91	6	354.00
410882	80	81,2	97	106	2	159.00
410883	80	81,2	97	106	6	399.00
410884	100	100,2	110	119	2	159.00
410885	100	100,2	110	119	6	399.00
410886	125	125,2	146	155	2	212.00
410887	125	125,2	146	155	6	476.00
410888	150	150,2	174	183	2	223.00
410889	150	150,2	174	183	6	546.00
410890	200	200,2	225	233,5	1	125.00
410891	200	200,2	225	233,5	3	296.00
