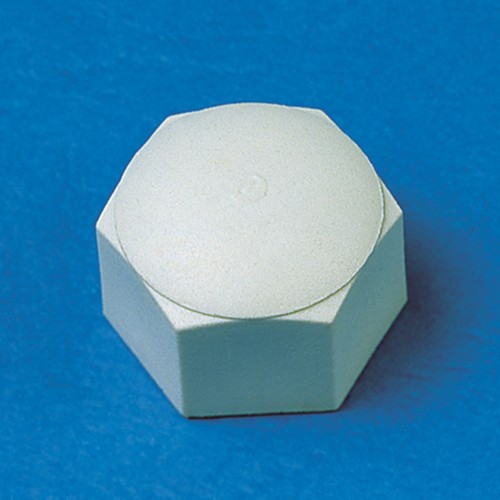

Hex Cap Nut made of PA - glass fibre reinforced

Technical specification Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)... more

Technical specification

Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)

Colour: white

General Information Chemical features: Good resistance to mineral lubricants, aromatic and... more

General Information

Chemical features:

Good resistance to mineral lubricants, aromatic and aliphatic hydrocarbons, gasoline, trichloroethylene, perchloroethylene, acetone and alkohols

Material specification:

Dimensionally stable and impact resistant

Suitable for heavy-duty and power transmission applications

Glass fibre reinforced polyamides have excellent impact resistance combined with a high stiffness and strength

Extremely robust to mechanical load

UV light and weather: medium resistance

Material: PA 6.6 (polyamide 6.6), glass fibre reinforced (25 %)

Density: 1.36 g/cm3

Temperature range: -40 to +120 °C, for a short time +240 °C

Tensile strength: 170 / 120 MPa (dry / humid) (ISO 527)

Bending strength: 210 MPa (ISO 178)

Elongation at break: 4 % (ISO 527)

Elastic modulus: 7,000 MPa (ISO 527)

Impact resistance (Charpy): 75 kJ/m2 (ISO 179/1eU)

Notch impact strength (Izod): 12 kJ/m2 (ISO 180/1A)

Melting point: +260 °C (ISO 11357)

Water absorption: 1.9 %; 6.0 % during storage in water (ISO 62)

Dielectric strength: 85 kV/mm (IEC 60243-1)

Volume resistivity: 1012 Ohm x m (IEC 60093)

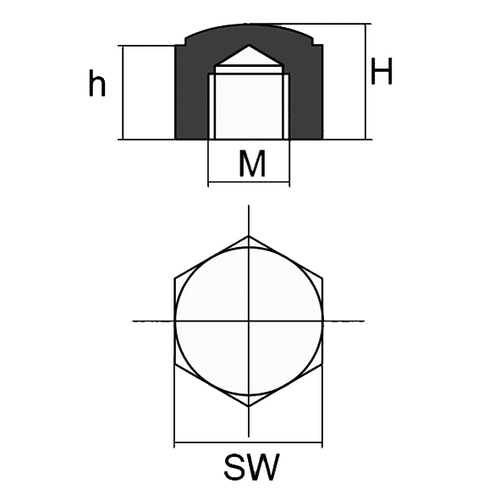

Item Image Internal thread h
mm
H
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy
305905
M3 x 0,5 3 4 5,5 50 48.00
305906
M3 x 0,5 3 4 5,5 100 81.00
305908
M4 x 0,7 4,2 5,5 7 50 53.00
305909
M4 x 0,7 4,2 5,5 7 100 90.00
