Edge Trim - without seal

Edge Trim - without seal
Application area For protection of edges (e.g. sheet metal cover hoods) As protection... more

Application area

For protection of edges (e.g. sheet metal cover hoods)

As protection against injuries

For improving the visual appearance

Product specification

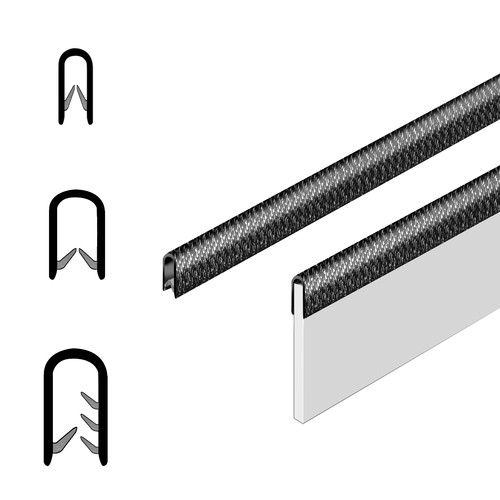

High-quality edge trim with various clamp ranges

With embedded steel metal clips / wire construction for strong hold

Mounting by hand or with a rubber / plastic mallet

Screwing or bonding usually not required

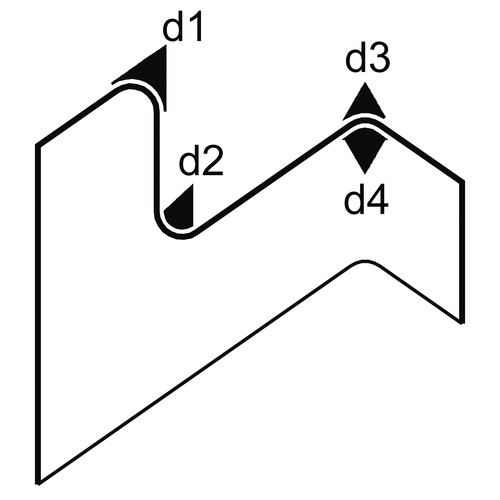

Minimum bending radii need to be considered

Delivery in lengths of 5 m and 10 m (on request as 50 m or 100 m rolls)

Technical specification

Material:

Edge trim: PVC black

Metal clips / wire construction: steel

Max. temperature: +80 °C

No additional information available.
Item Image Clamping Range
mm
min. d1
mm
Min. d2
mm
Min. d3
mm
Min. d4
mm
Weight
g/m
Unit
m
Price
Euro*
Buy

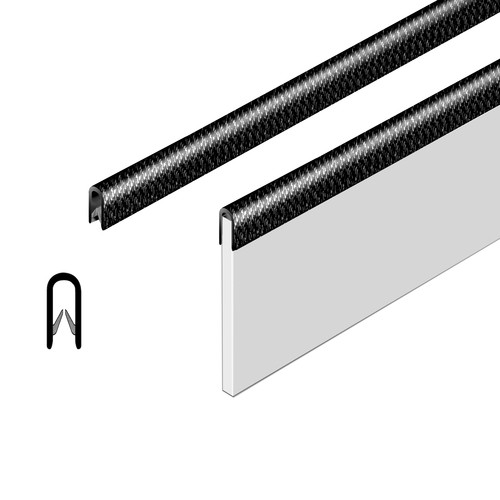

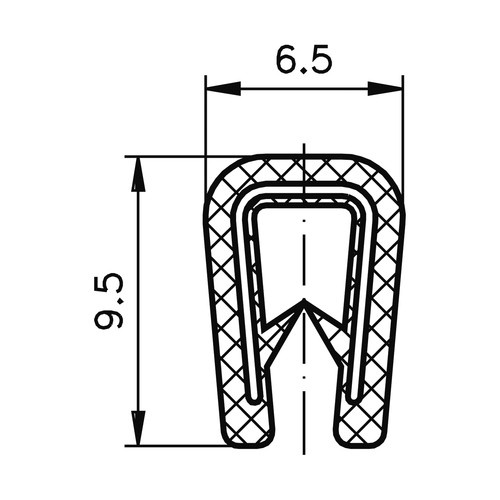

707073
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
1 - 2 15 15 10 10 65 5 36.00
707074
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
1 - 2 15 15 10 10 65 10 55.00
707075
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
1 - 4 30 20 20 20 140 5 40.00

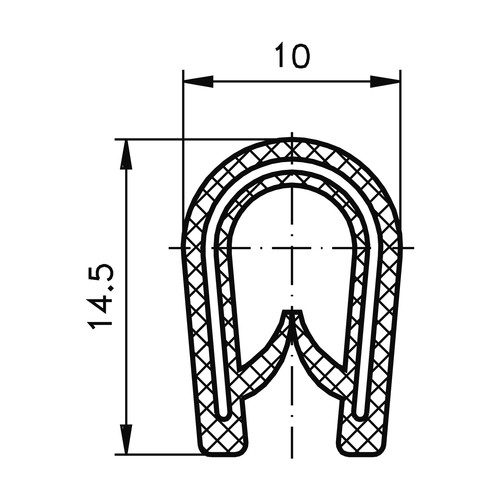

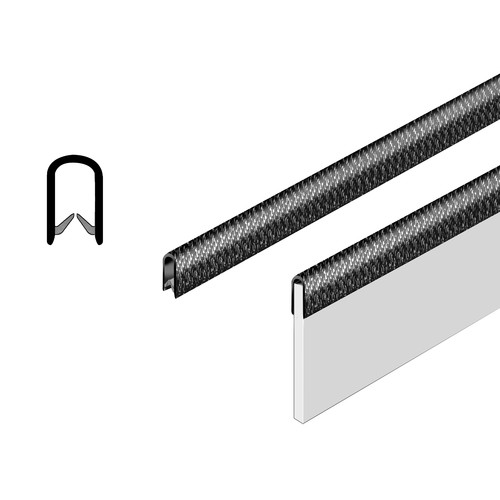

707076
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
1 - 4 30 20 20 20 140 10 60.00
707077
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
4 - 6 50 40 30 30 160 5 65.00

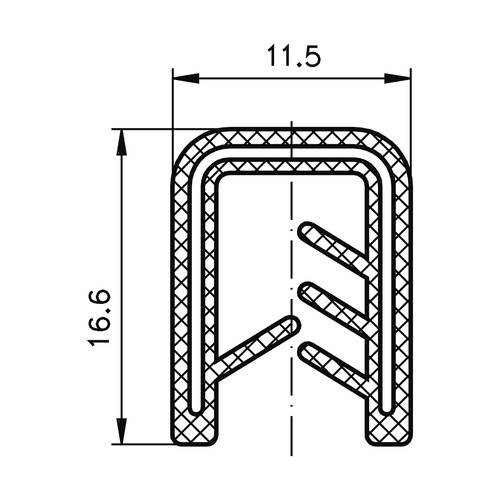

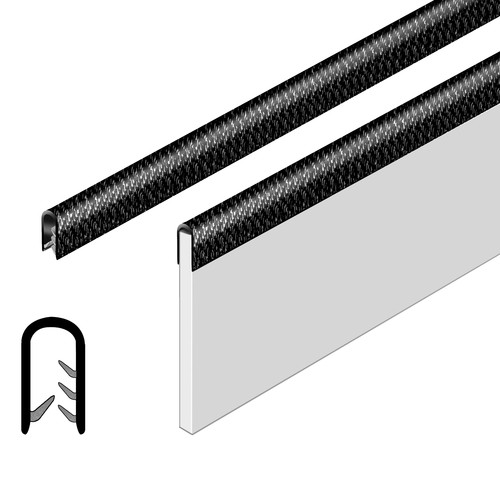

707078
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
Edge Trim - without seal Edge Trim - without seal
4 - 6 50 40 30 30 160 10 105.00
