Angle-Body Drain Cock made of HDPE with Hose Nozzle - male thread R 1/2"

Product specification Angle-body drain cock made of natural-coloured HDPE with pipe thread... more

Product specification

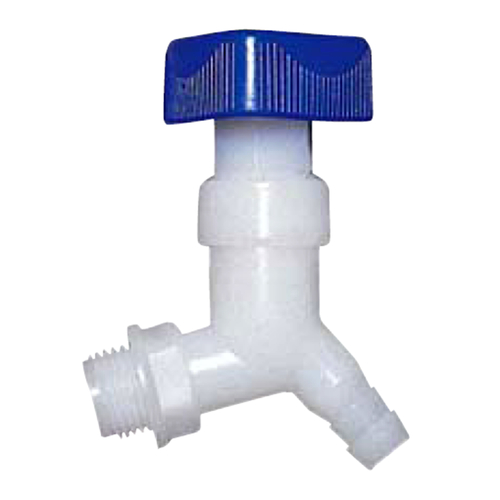

Angle-body drain cock made of natural-coloured HDPE with pipe thread (R-thread) and hose nozzle as outlet, with hexagon as mounting tool, as well as with red and blue fixing points at the side of the knob.

Technical specification

Material: HDPE (polyethylene, rigid, high density)

Max. temperature: up to +100 °C, for a short time +115 °C

Max. operating pressure: 2 bar at +20 °C

No additional information available.

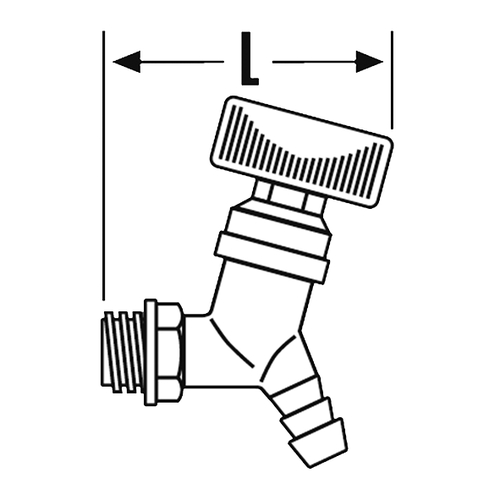

Item Image External thread Schlauch Innen-Ø
mm
NW
mm
L
mm
Einheit
Stück
Price
Euro*
Buy
40699
R 1/2" 12,7 10 85 3 81.00
