Straight Pipe Connector made of PVDF - two-part

Straight Pipe Connector made of PVDF - two-part

Product specification Straight, two-part screwing, pipe connection on both sides, body and... more

Close menu

Product specification

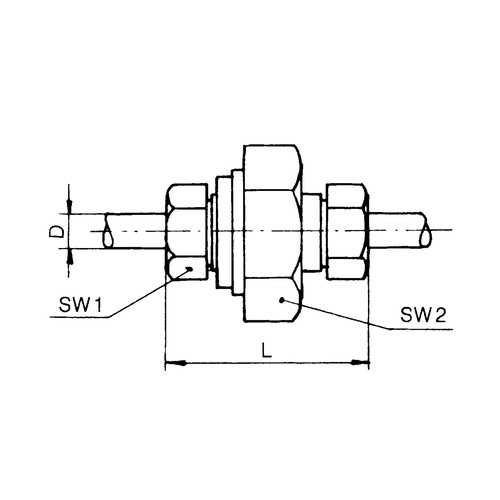

Straight, two-part screwing, pipe connection on both sides, body and cap nut made of PVDF

General Information MULTIFIT ® PVDF PVDF is a fluorinated thermoplastic with a... more

Close menu

General Information MULTIFIT^® PVDF

PVDF is a fluorinated thermoplastic with a lot of excellent chemical and mechanical properties.

A particular characteristic of the MULTIFIT^®-pipe fittings is the construction of the gasket. The O-rings do not only prevent the formation of leaks but also the occurence of torsional tensions in the pipes. The torsional forces are not transmitted to the pipes but are confined to the screwed fitting parts; consequently, this system guarantees absolute safety even with the most complicated applications.

Material:

Housing: PVDF (polyvinylidene fluoride)

Gaskets: FPM (fluorinated rubber)

Colour: nature, slightly translucent

Density: 1.75 g/cm³

Temperature range: -40 to +140 °C

Shore hardness D: 79° (great hardness)

Water absorption: <0.04 % (water resistant)

Tensile strength: 38 - 50 N/mm²

Elongation at break: 12 %

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 6 g/10 min.
