Product specification

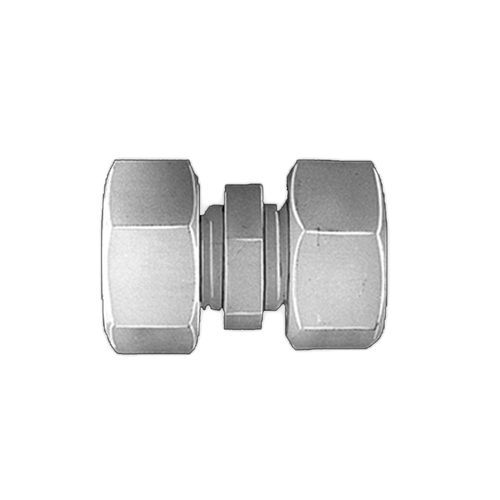

Straight, pipe connection on both sides, body and cap nut made of PVDF
General Information MULTIFIT® PVDF
PVDF is a fluorinated thermoplastic with a lot of excellent chemical and mechanical properties.
A particular characteristic of the MULTIFIT®-pipe fittings is the construction of the gasket. The O-rings do not only prevent the formation of leaks but also the occurence of torsional tensions in the pipes. The torsional forces are not transmitted to the pipes but are confined to the screwed fitting parts; consequently, this system guarantees absolute safety even with the most complicated applications.
Material:
Housing: PVDF (polyvinylidene fluoride)
Gaskets: FPM (fluorinated rubber)
Colour: nature, slightly translucent
Density: 1.75 g/cm3
Temperature range: -40 to +140 °C
Shore hardness D: 79° (great hardness)
Water absorption: <0.04 % (water resistant)
Tensile strength: 38 - 50 N/mm2
Elongation at break: 12 %
Surface resistance: >1013 Ohm
Melt flow index MFR: 6 g/10 min.

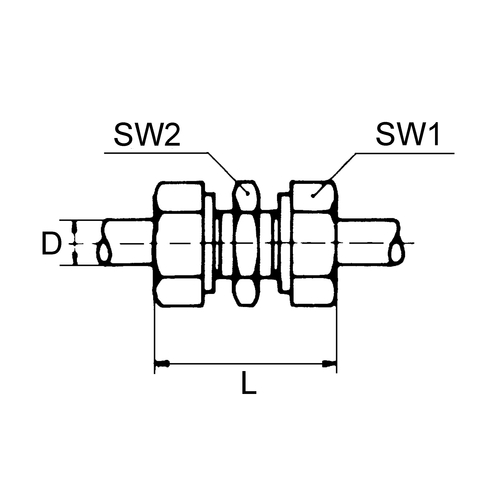

| Item | Image |
Pipe outside Ø mm
|
L mm
|
SW1 mm
|
SW2 mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 61662 |
|
4 | 35 | 17 | 17 | 1 | 72.00 | |
| 61663 |
|
6 | 35 | 22 | 17 | 1 | 67.00 | |
| 61665 |
|
10 | 37 | 24 | 22 | 1 | 83.00 | |
| 61666 |
|
12 | 41 | 27 | 22 | 1 | 83.00 | |
| 61669 |
|
25 | 48 | 41 | 41 | 1 | 132.00 | |
