Product specification

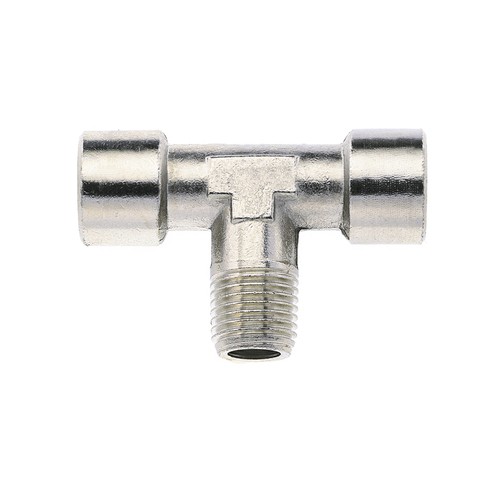

T-shape, G-internal thread (cylindrical) on two sides, R-external thread (conical) on the third side
General Information
Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.
Material: brass MS 58 (2.0401)
Material composition: CuZn 39 Pb3 - material 2.0401
Design: nickel-plated
Max. operating pressure: 8 bar at +20°C
Thread types:
a. Withworth thread according to ISO 228, referred to as G-thread
b. Withworth thread according to DIN 2999, referred to as R-thread
| Item | Image | Internal thread | Außengewinde |
Gewindelänge mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 331141 |
|
G 1/8" | R 1/8" | 8 | 11 | 10 | 67.00 | |
| 331142 |
|
G 1/4" | R 1/4" | 11 | 13 | 10 | 101.00 | |
| 331143 |
|
G 3/8" | R 3/8" | 12 | 17 | 5 | 75.00 | |
| 331144 |
|
G 1/2" | R 1/2" | 14 | 21 | 5 | 105.00 | |
