Application area
SMD power modules, electrolytic capacitors, thermo sensors, high-power diodes, heat pipes, CD-ROM cooling, CPU modules, charging devices, UPS, SMPS, motor control units and cooling systems
Product specification
High thermal conductivity
High dielectric strength
Extraordinarily flexible and elastic
Excellent cushioning properties
Double-sided adhesion
Quick and easy handling, superior process reliability
Technical specification

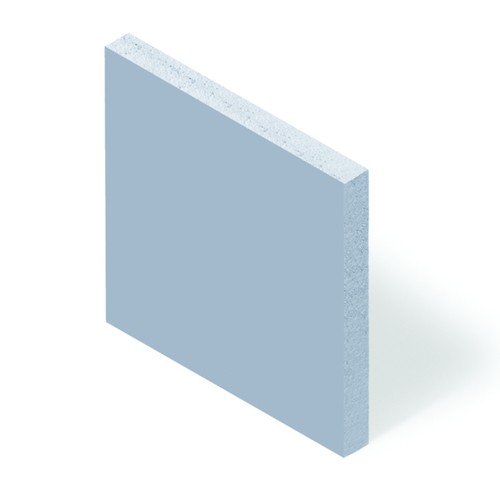

Material: soft silicone with thermally conductive ceramic
Colour: light blue
Temperature range: -60 to +180 °C
Tensile strength: 0.15 MPa
Hardness (Asker C): 25
Volume resistivity: 1.0 x 1011 Ohm x m
Dielectric constant: 5.2 at 1 kHz
Thermal conductivity: 2.5 W/m * K
Heat transfer resistance: see table
Flammability rating: UL 94 V-0
General Information
High-tech materials for heat problems in high-tech devices offer, compared to traditional use of mica with heat-conductive paste, the following important advantages:
Specified layer thicknesses
Quick and clean handling, superior process reliability
Interchangeability of materials without surface treatment
Safe reproducibility of results
Please note also the silicone-free heat technology products such as waxed PI sheets and carbon foils or heat-conductive paste.
| Item | Image |
Thickness mm
|
Wärme-ÜW1 |
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 339591 |
|
0,5 | 0,28 | 300 x 480 | 1 | 255.00 | |
| 339592 |
|
0,5 | 0,28 | 150 x 240 | 1 | 116.00 | |
| 339593 |
|
1 | 0,49 | 300 x 480 | 1 | 324.00 | |
| 339594 |
|
1 | 0,49 | 150 x 240 | 1 | 142.00 | |
| 339595 |
|
2 | 0,89 | 300 x 480 | 1 | 433.00 | |
| 339596 |
|
2 | 0,89 | 150 x 240 | 1 | 187.00 | |
| 339597 |
|
3 | 1,2 | 300 x 480 | 1 | 542.00 | |
| 339598 |
|
3 | 1,2 | 150 x 240 | 1 | 229.00 | |
